Roxtec CF 16 EMC frame

Print

The Roxtec CF 16 EMC is a compact frame with built-in compression. It can be used for multiple pre-routed cables/pipes as well as for retrofit.

  • To be used with corresponding Roxtec components to form a complete sealing solution
  • Available in powder-coated mild steel or stainless steel AISI 304
Buy components
CF 16 EMC AISI 304
CF 16 EMC AISI 304

Component articles

mm/kg inch/lbs

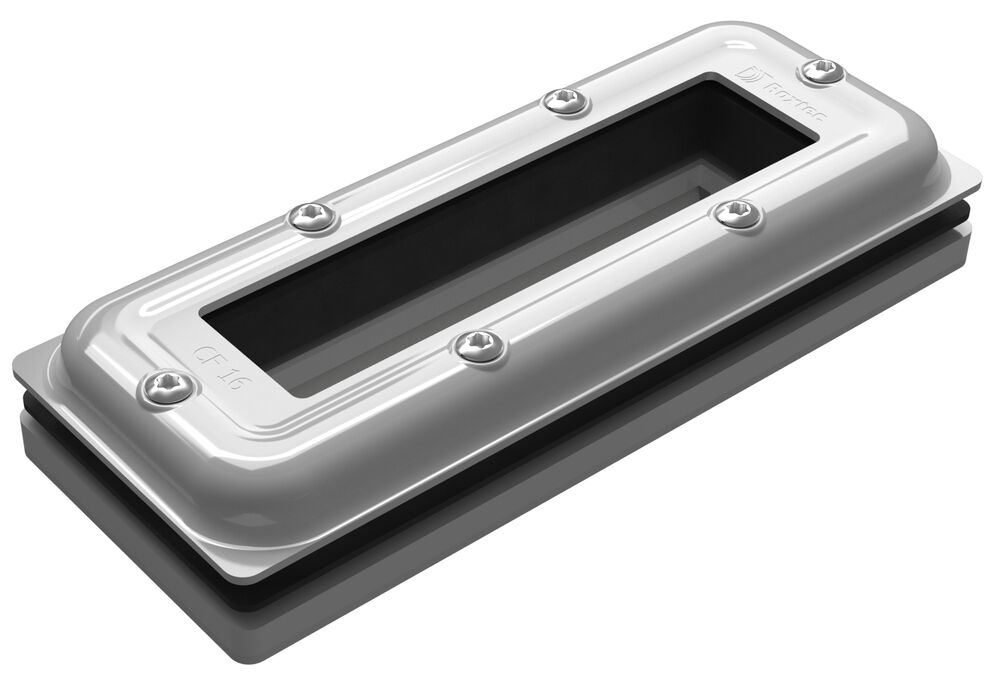

Powder coated mild steel

CF 16 EMC

  • Frame openings 1
  • Packing space (in) 1.575 x 6.299
  • External dimensions WxHxD (in) 3.661 x 9.213 x 1.969
  • Aperture dimensions WxH (in) 2.795(+0.039/-0.039) x 7.362(+0.079/-0.02)
  • Weight (lbs) 3.8
  • Art. No ECF0000160019
dxf
Download
stp
Download
Add
Remove from cart?

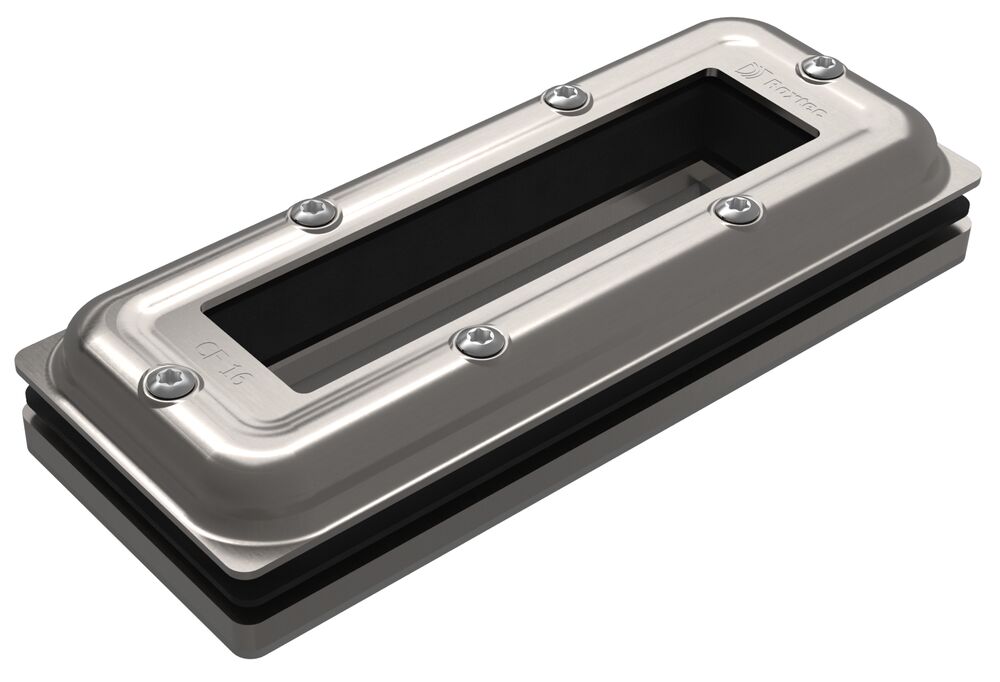

Stainless steel

CF 16 EMC AISI304

  • Frame openings 1
  • Packing space (in) 1.575 x 6.299
  • External dimensions WxHxD (in) 3.661 x 9.213 x 1.969
  • Aperture dimensions WxH (in) 2.795(+0.039/-0.039) x 7.362(+0.079/-0.02)
  • Weight (lbs) 3.1
  • Art. No ECF0001600221
dxf
Download
stp
Download
Add
Remove from cart?
Powder coated mild steel
Product Frame openings Packing space (in) External dimensions WxHxD (in) Aperture dimensions WxH (in) Weight (lbs) Art. No
CF 16 EMC 1 1.575 x 6.299 3.661 x 9.213 x 1.969 2.795(+0.039/-0.039) x 7.362(+0.079/-0.02) 3.8 ECF0000160019
Stainless steel
Product Frame openings Packing space (in) External dimensions WxHxD (in) Aperture dimensions WxH (in) Weight (lbs) Art. No
CF 16 EMC AISI304 1 1.575 x 6.299 3.661 x 9.213 x 1.969 2.795(+0.039/-0.039) x 7.362(+0.079/-0.02) 3.1 ECF0001600221
