Roxtec RM BG™ Ex solid compensation module

Print

Use the print button on the page for an optimized print layout.

Roxtec RM modules are 60 mm (2.362") deep. The BG Ex version of the solid module is used for bonding and grounding of armored and metal-clad cables in potentially explosive atmospheres and hazardous locations.

  • To be used with corresponding Roxtec components to form a complete sealing solution
RM 30_0 BG EX
RM 30_0 BG EX

Component articles

mm/kg inch/lbs

RM BG B Ex

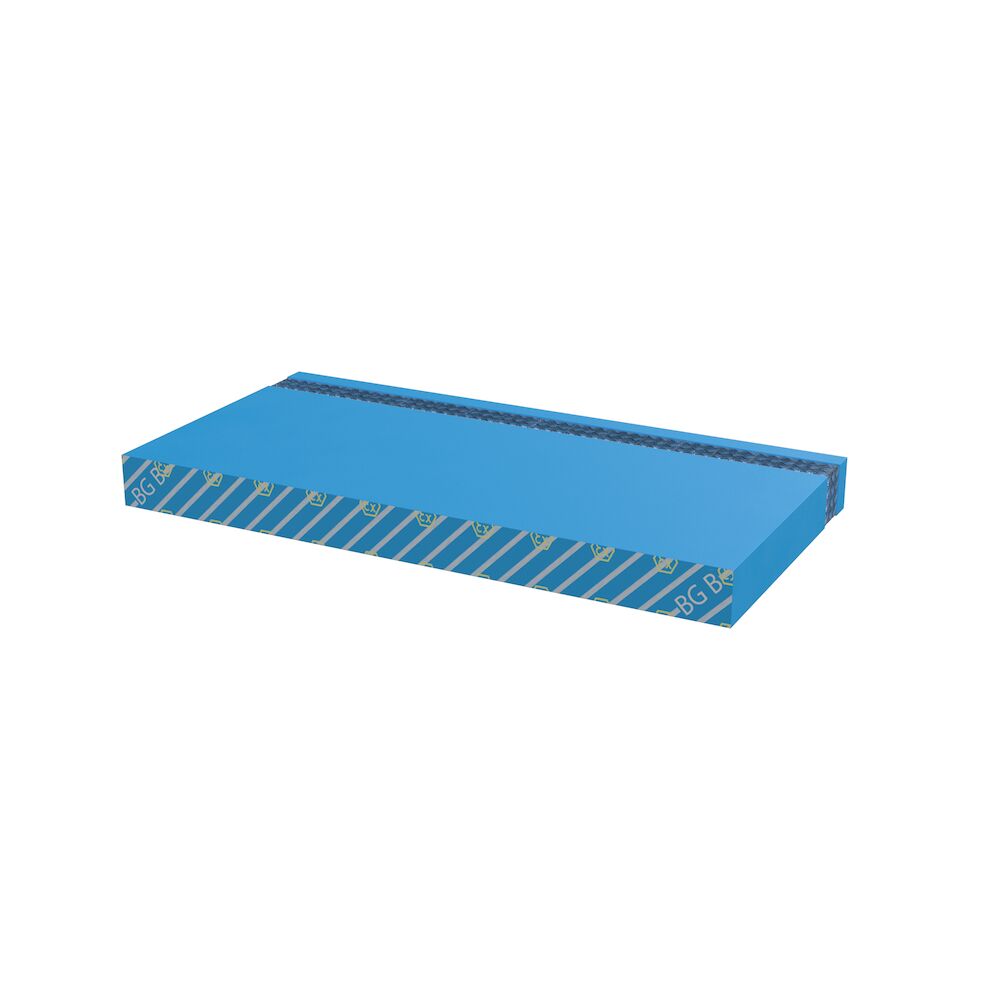

RM 10w120/0 BG B Ex

  • External dimensions WxHxD (mm) 120 x 10 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.14
  • Art. No 109381
Remove from cart?

RM 20/0 BG B Ex

  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.04
  • Art. No 102728
Remove from cart?

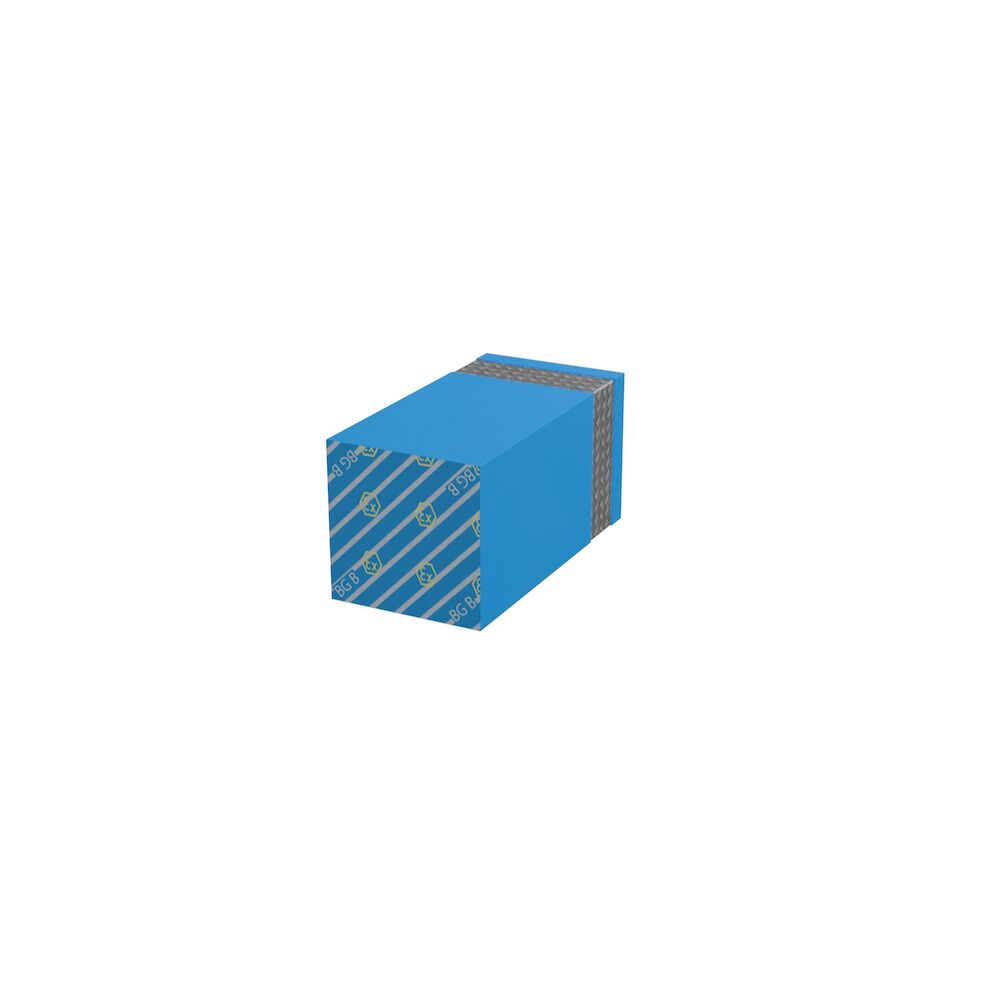

RM 30/0 BG B Ex

  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.09
  • Art. No 102729
Remove from cart?

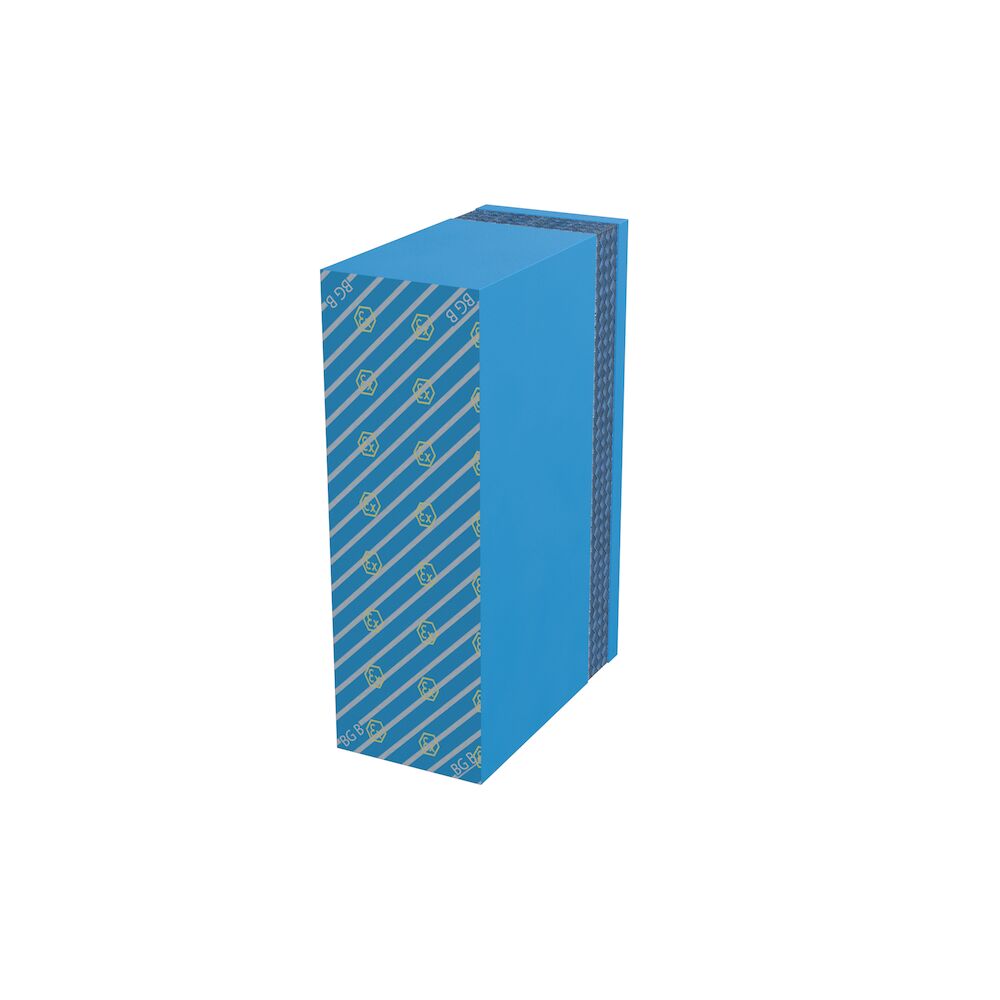

RM 30H90/0 BG B Ex

  • External dimensions WxHxD (mm) 30 x 90 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.26
  • Art. No 103847
Remove from cart?

RM 40/0 BG B Ex

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.15
  • Art. No 102730
Remove from cart?

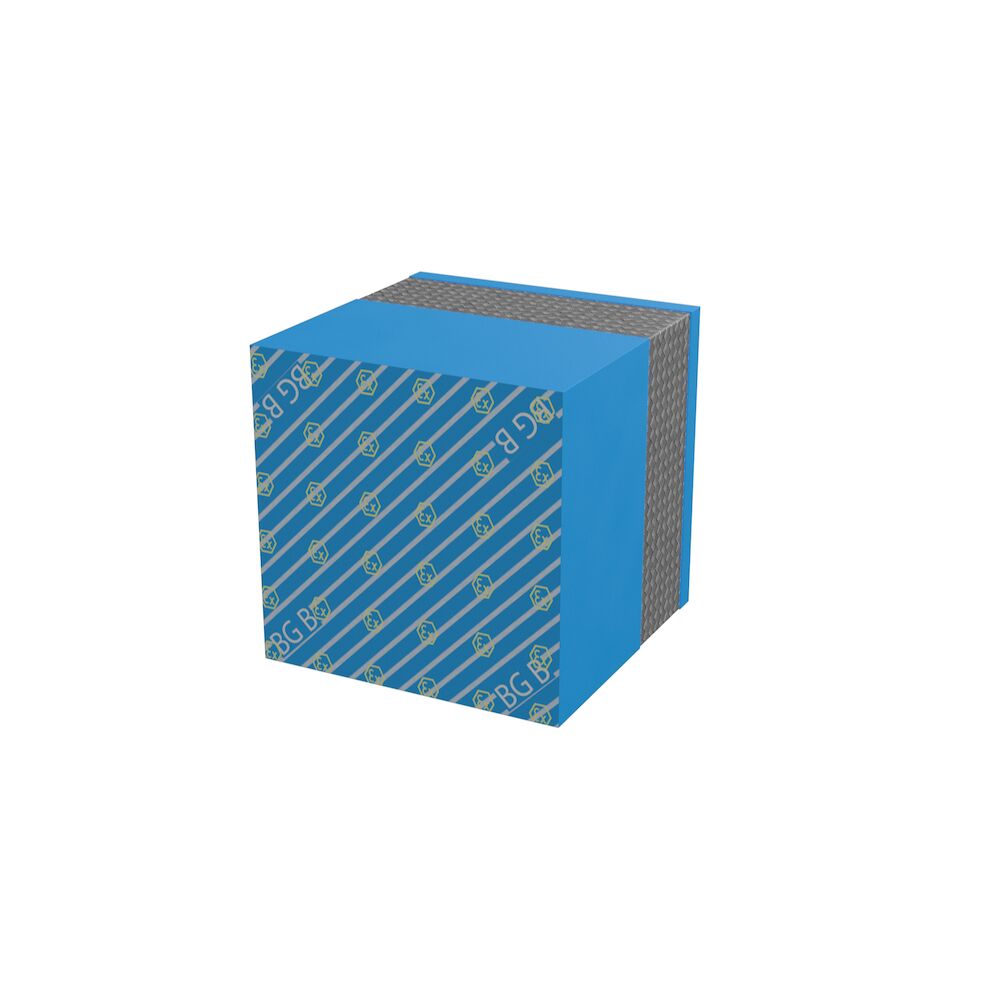

RM 60/0 BG B Ex

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.35
  • Art. No 102731
Remove from cart?

RM BG Ex

RM 10w120/0 BG Ex

  • External dimensions WxHxD (mm) 120 x 10 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.13
  • Art. No 109382
Remove from cart?

RM 20/0 BG Ex

  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.05
  • Art. No 102488
Remove from cart?

RM 30/0 BG Ex

  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.09
  • Art. No 102489
Remove from cart?

RM 30H90/0 BG Ex

  • External dimensions WxHxD (mm) 30 x 90 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.27
  • Art. No 103846
Remove from cart?

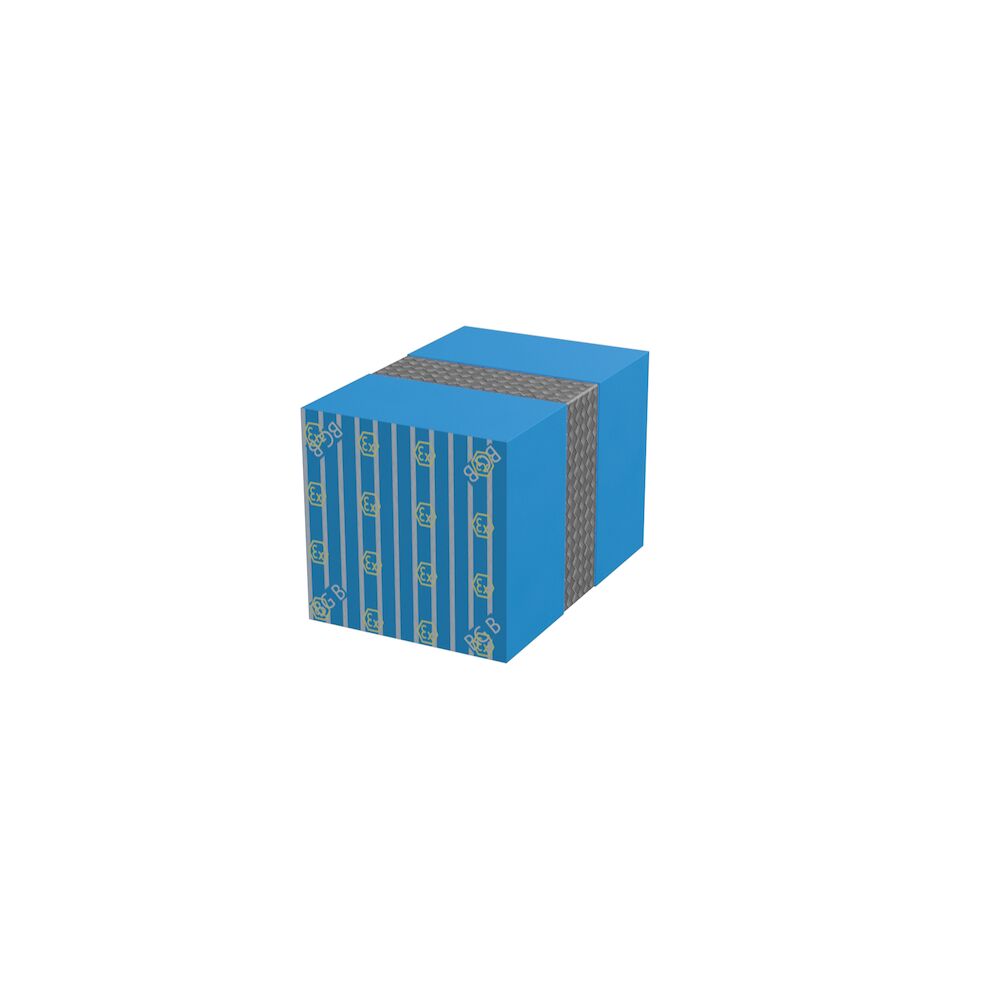

RM 40/0 BG Ex

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.15
  • Art. No 102490
Remove from cart?

RM 60/0 BG Ex

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 0
  • For cable/pipe Ø (mm) 0 - 0
  • Weight (kg) 0.35
  • Art. No 102491
Remove from cart?
RM BG B Ex
Product External dimensions WxHxD (mm) Number of cables/pipes For cable/pipe Ø (mm) Weight (kg) Art. No
RM 10w120/0 BG B Ex 120 x 10 x 60 0 0 - 0 0.14 109381
RM 20/0 BG B Ex 20 x 20 x 60 0 0 - 0 0.04 102728
RM 30/0 BG B Ex 30 x 30 x 60 0 0 - 0 0.09 102729
RM 30H90/0 BG B Ex 30 x 90 x 60 0 0 - 0 0.26 103847
RM 40/0 BG B Ex 40 x 40 x 60 0 0 - 0 0.15 102730
RM 60/0 BG B Ex 60 x 60 x 60 0 0 - 0 0.35 102731
RM BG Ex
Product External dimensions WxHxD (mm) Number of cables/pipes For cable/pipe Ø (mm) Weight (kg) Art. No
RM 10w120/0 BG Ex 120 x 10 x 60 0 0 - 0 0.13 109382
RM 20/0 BG Ex 20 x 20 x 60 0 0 - 0 0.05 102488
RM 30/0 BG Ex 30 x 30 x 60 0 0 - 0 0.09 102489
RM 30H90/0 BG Ex 30 x 90 x 60 0 0 - 0 0.27 103846
RM 40/0 BG Ex 40 x 40 x 60 0 0 - 0 0.15 102490
RM 60/0 BG Ex 60 x 60 x 60 0 0 - 0 0.35 102491
