High cable density aluminum transit for enclosures.
The Roxtec CF 8 Ex and CF 32 Ex are cable and pipe transits with frames of cast aluminum. The entry seals are certified for Ex e and Ex tb areas in temperatures from -40 to +80°C and can be used with armored cables that require bonding and grounding. The sealing modules are adaptable to cables and pipes of different sizes.
- Rodent resistant
- Light-weight
- Area efficient
Download
Product characteristics
-
IP/UL NEMA
-
Ex rated
-
Electrical safety
Download
Ratings & certificates
Certificates are continuously added, renewed and replaced, please visit regularly to ensure compliance.
Installation
Structure of installation
-
Cabinets & enclosures
Installation instructions
Technical drawings
Technical drawings
Seals for your industry
Explore the multitude of applications where you can benefit from our solutions.
Sealing component data
Here you find technical information about each specific part of our system.
Rectangular frames
Sealing components
Pre-configured transit kits
BG B Ex
Ex
CF 8/8 Ex
- Configuration 8x (3.5-16.5)
- External dimensions WxHxD (mm) 75 x 140 x 59
- Aperture dimensions WxH (mm) 61(+0.5/-0.5) x 127(+0.5/-0.5)
- Weight (kg) 0.9
- Art. No EXCKT80000008
CF 32/20 Ex
- Configuration 4x (9.5-32.5), 16x (3.5-16.5)
- External dimensions WxHxD (mm) 130 x 230 x 59
- Aperture dimensions WxH (mm) 110(+0.5/-0.5) x 216(+0.5/-0.5)
- Weight (kg) 2.2
- Art. No EXCKT32000020
CF 32/32 Ex
- Configuration 32x (3.5-16.5)
- External dimensions WxHxD (mm) 130 x 230 x 59
- Aperture dimensions WxH (mm) 110(+0.5/-0.5) x 216(+0.5/-0.5)
- Weight (kg) 1.8
- Art. No EXCKT32000032
| Product | Configuration | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|

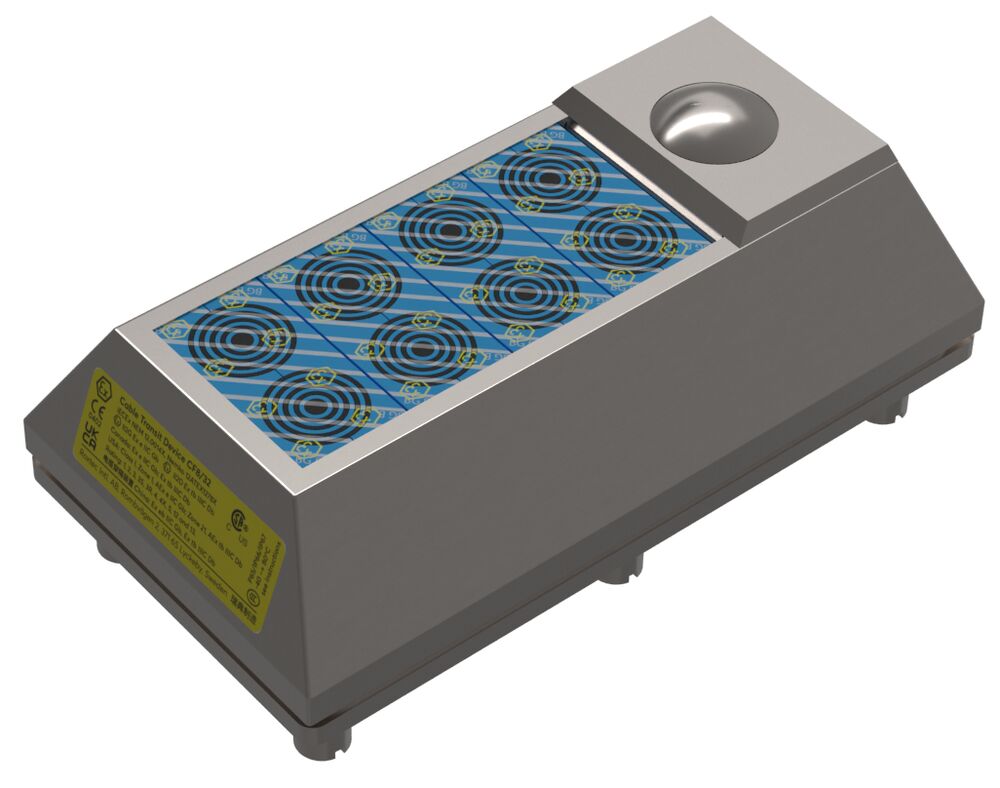

| CF 8/8 BG B Ex | 8x (3.5-16.5) | 75 x 140 x 59 | 61(+0.5/-0.5) x 127(+0.5/-0.5) | 0.8 | 103591 | |

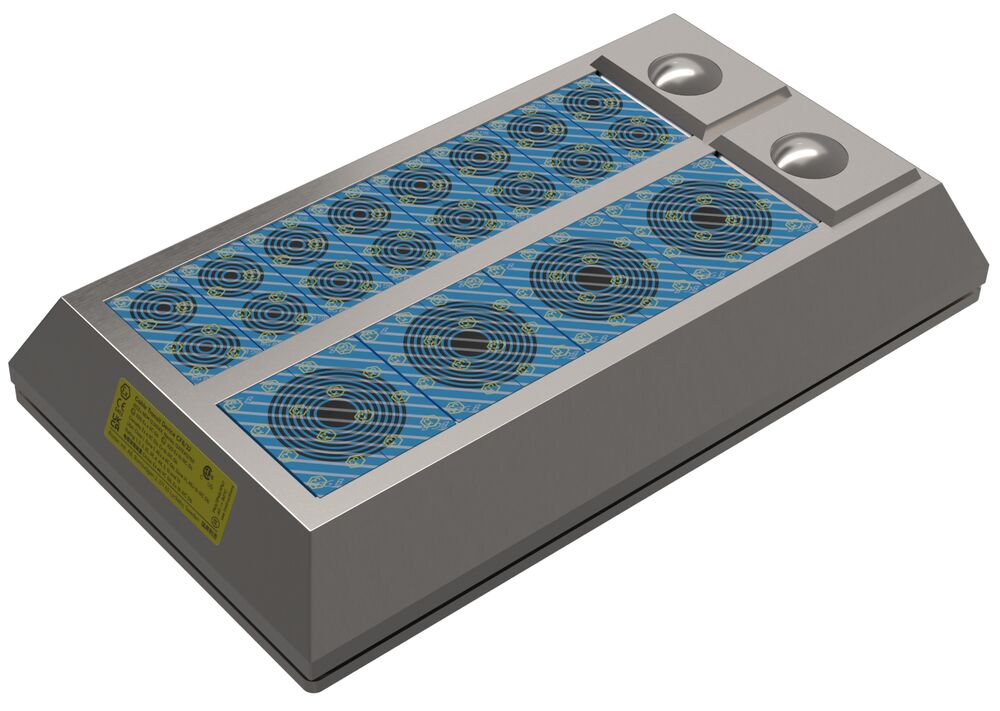

| CF 32/20 BG B Ex | 4x (9.5-32.5), 16x (3.5-16.5) | 130 x 230 x 59 | 110(+0.5/-0.5) x 216(+0.5/-0.5) | 2.5 | 103736 | |

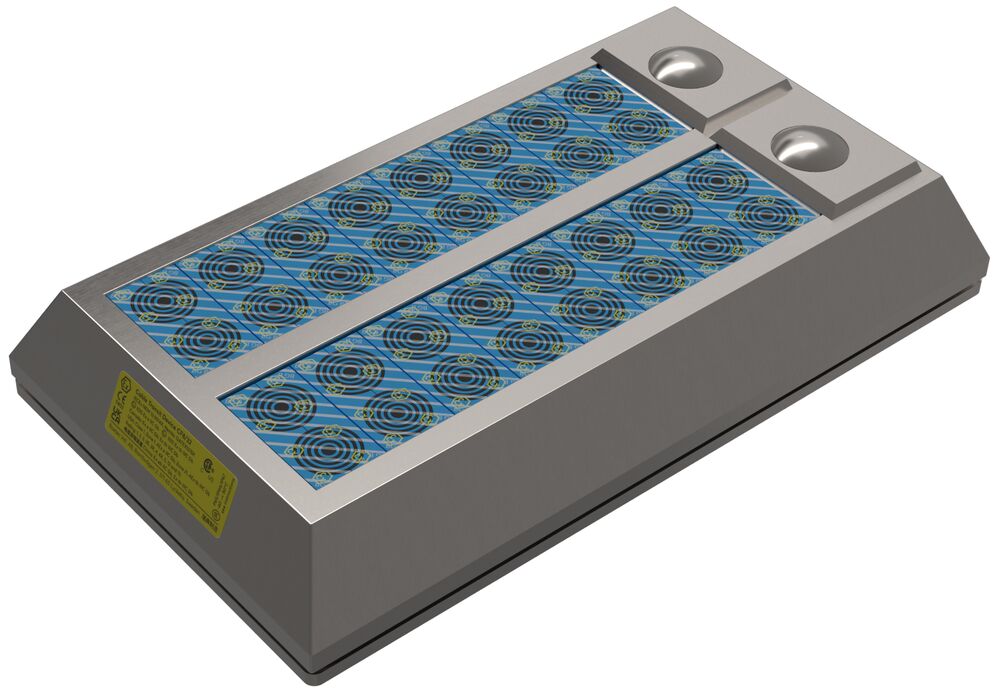

| CF 32/32 BG B Ex | 32x (3.5-16.5) | 130 x 230 x 59 | 110(+0.5/-0.5) x 216(+0.5/-0.5) | 2.4 | 103737 |
| Product | Configuration | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|
| CF 8/8 Ex | 8x (3.5-16.5) | 75 x 140 x 59 | 61(+0.5/-0.5) x 127(+0.5/-0.5) | 0.9 | EXCKT80000008 | |
| CF 32/20 Ex | 4x (9.5-32.5), 16x (3.5-16.5) | 130 x 230 x 59 | 110(+0.5/-0.5) x 216(+0.5/-0.5) | 2.2 | EXCKT32000020 | |
| CF 32/32 Ex | 32x (3.5-16.5) | 130 x 230 x 59 | 110(+0.5/-0.5) x 216(+0.5/-0.5) | 1.8 | EXCKT32000032 |
