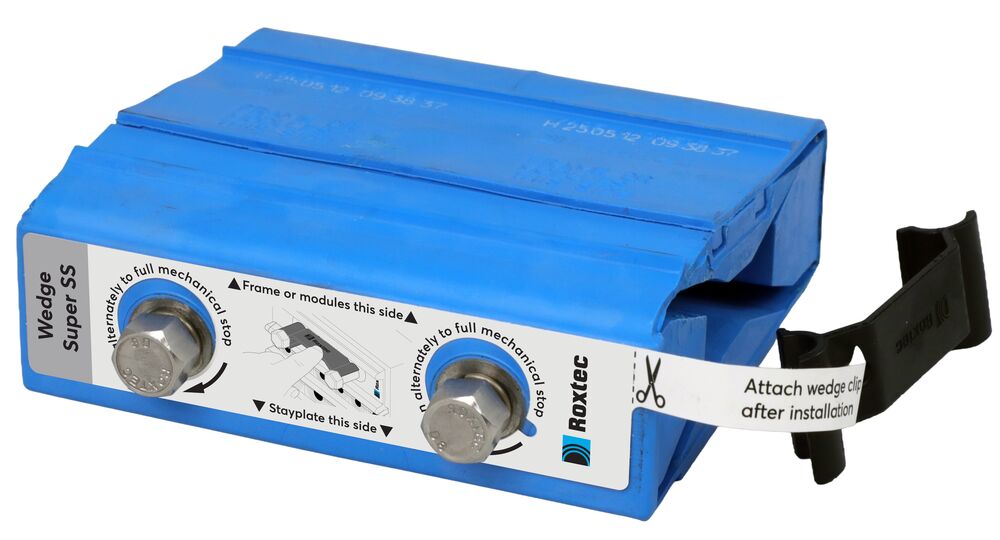

The Roxtec Wedge is used in frames with a rectangular packing space and seal the installation of cables, pipes, modules and stayplates. The Roxtec Wedge kit contains all necessary components for compressing the system.
- To be used with corresponding Roxtec components to form a complete sealing solution





Technical drawings
Installation instructions
Component articles
Galvanized mild steel

WEDGEKIT 120 GALV
- External dimensions W (mm) 120
- Weight (kg) 1.5
- Art. No AWK0001201018

WEDGEKIT 60 GALV
- External dimensions W (mm) 60
- Weight (kg) 0.8
- Art. No 5AWK000000283
Stainless steel

WEDGEKIT 120 AISI316
- External dimensions W (mm) 120
- Weight (kg) 1.5
- Art. No AWK0001201021

WEDGEKIT 60 AISI316
- External dimensions W (mm) 60
- Weight (kg) 0.8
- Art. No AWK0006001011
Product | External dimensions W (mm) | Weight (kg) | Art. No | |
---|---|---|---|---|
WEDGE 120 GALV | 120 | 0.8 | ARW0001201018 | |
WEDGE 80 GALV | 80 | 0.6 | 223374 | |
WEDGE 60 GALV | 60 | 0.4 | ARW0000601018 | |
WEDGEKIT 120 GALV | 120 | 1.5 | AWK0001201018 | |
WEDGEKIT 60 GALV | 60 | 0.8 | 5AWK000000283 |
Product | External dimensions W (mm) | Weight (kg) | Art. No | |
---|---|---|---|---|
WEDGE 120 AISI316 | 120 | 0.8 | ARW0001201021 | |
WEDGE 80 AISI316 | 80 | 0.6 | 223378 | |
WEDGE 60 AISI316 | 60 | 0.4 | ARW0000601021 | |
WEDGEKIT 120 AISI316 | 120 | 1.5 | AWK0001201021 | |
WEDGEKIT 60 AISI316 | 60 | 0.8 | AWK0006001011 |
