Roxtec Stayplates are used for pull-out resistance against forces in cables and pipes. To be inserted between rows of modules in frames with a rectangular packing space and separate compression units.
- To be used with corresponding Roxtec components to form a complete sealing solution
Technical drawings
Component articles
Galvanized mild steel
STAYPLATE 60 GALV
- Fits packing space W (mm) 60
- Weight (kg) 0.05
- Art. No ASP0000600018
STAYPLATE 80 GALV
- Fits packing space W (mm) 87
- Weight (kg) 0.07
- Art. No 5ASP000003504
STAYPLATE 120 GALV
- Fits packing space W (mm) 120
- Weight (kg) 0.11
- Art. No ASP0001200018
Stainless steel
STAYPLATE 60 AISI316
- Fits packing space W (mm) 60
- Weight (kg) 0.06
- Art. No ASP0000600021
STAYPLATE 80 AISI316
- Fits packing space W (mm) 87
- Weight (kg) 0.07
- Art. No 5ASP000010976

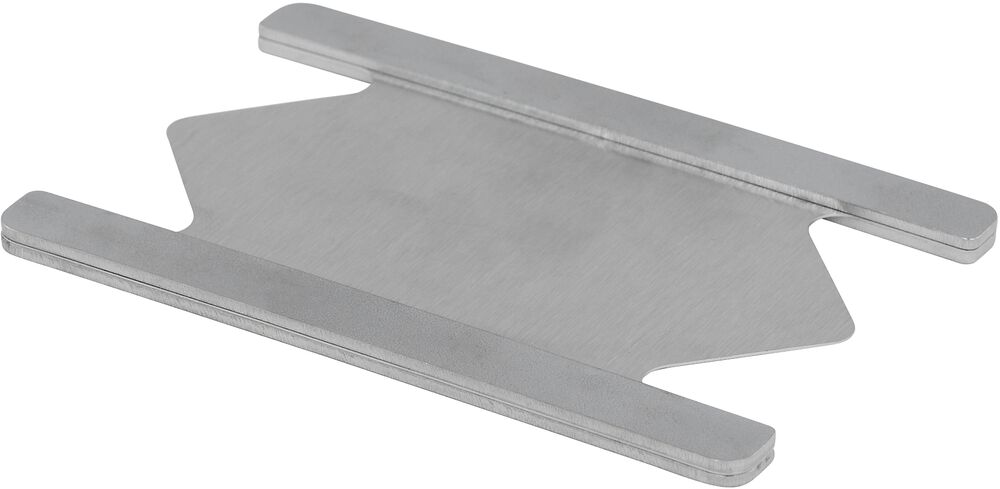

STAYPLATE 120 AISI316
- Fits packing space W (mm) 120
- Weight (kg) 0.11
- Art. No ASP0001200021
Product | Fits packing space W (mm) | Weight (kg) | Art. No | |
---|---|---|---|---|
STAYPLATE 60 GALV | 60 | 0.05 | ASP0000600018 | |
STAYPLATE 80 GALV | 87 | 0.07 | 5ASP000003504 | |
STAYPLATE 120 GALV | 120 | 0.11 | ASP0001200018 |
Product | Fits packing space W (mm) | Weight (kg) | Art. No | |
---|---|---|---|---|
STAYPLATE 60 AISI316 | 60 | 0.06 | ASP0000600021 | |
STAYPLATE 80 AISI316 | 87 | 0.07 | 5ASP000010976 | |
STAYPLATE 120 AISI316 | 120 | 0.11 | ASP0001200021 |
