The Roxtec SRC frame is a metal frame for load bearing structures. It is designed with rounded corners to reduce stress concentration and the risk of cracks around the frame. It is available in different materials.
- To be used with corresponding Roxtec components to form a complete sealing solution
- Attachment by welding
- Available in two versions, SRC r20 and SRC r40
Technical drawings
Installation instructions
Certificates
Component articles
The seals we suggest are ideal for cost-efficient standardization. Select them to cover your needs, shorten lead times and reduce the need for stock keeping.
SRC R20, primed mild steel
SRC R20, stainless steel
SRC R20, aluminum
SRC R40, primed mild steel
SRC R40, stainless steel
SRC R40, aluminum
SRC R20, primed mild steel
SRC R20, stainless steel
SRC R20, aluminum
SRC R40, primed mild steel
SRC R40, stainless steel
SRC R40, aluminum
The seals we suggest are ideal for cost-efficient standardization. Select them to cover your needs, shorten lead times and reduce the need for stock keeping.
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R20 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | SRC6000020112 | |
| SRC 6x2 R20 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000020212 | |
| SRC 6x3 R20 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000020312 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R20 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | 5SRC000006106 | |
| SRC 6x2 R20 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | 5SRC000006105 | |
| SRC 6x3 R20 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.6 | 5SRC000006684 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R20 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1.1 | 5SRC000003054 | |
| SRC 6x2 R20 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.9 | 5SRC000004149 | |
| SRC 6x3 R20 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000011726 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R40 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | SRC6000040112 | |
| SRC 6x2 R40 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000040212 | |
| SRC 6x3 R40 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000040312 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R40 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | 5SRC000010300 | |
| SRC 6x2 R40 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.1 | 5SRC000010299 | |
| SRC 6x3 R40 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.4 | 5SRC000010298 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R40 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1 | 5SRC000003232 | |
| SRC 6x2 R40 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.8 | 5SRC000005649 | |
| SRC 6x3 R40 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000005650 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 2x1 R20 PRIMED | 1 | 120 x 60 | 140.5 x 121 x 60 | 143(+1/-1) x 123(+1/-1) | 2 | SRC2000020112 | |
| SRC 2x2 R20 PRIMED | 2 | 120 x 60 | 271 x 121 x 60 | 273(+1/-1) x 123(+1/-1) | 3.9 | SRC2000020212 | |
| SRC 2x3 R20 PRIMED | 3 | 120 x 60 | 401.5 x 121 x 60 | 404(+1/-1) x 123(+1/-1) | 5.5 | SRC2000020312 | |
| SRC 2x4 R20 PRIMED | 4 | 120 x 60 | 532 x 121 x 60 | 534(+1/-1) x 123(+1/-1) | 7.1 | SRC2000020412 | |
| SRC 2x5 R20 PRIMED | 5 | 120 x 60 | 662.5 x 121 x 60 | 665(+1/-1) x 123(+1/-1) | 8.7 | SRC2000020512 | |
| SRC 2x6 R20 PRIMED | 6 | 120 x 60 | 793 x 121 x 60 | 795(+1/-1) x 123(+1/-1) | 10.3 | SRC2000020612 | |
| SRC 2+2x1 R20 PRIMED | 2 | 120 x 60 | 140.5 x 232 x 60 | 143(+1/-1) x 234(+1/-1) | 3.9 | 113823 | |
| SRC 2+2x2 R20 PRIMED | 4 | 120 x 60 | 271 x 242 x 60 | 273(+1/-1) x 244(+1/-1) | 8 | 113824 | |
| SRC 2+2x3 R20 PRIMED | 6 | 120 x 60 | 401.5 x 242 x 60 | 404(+1/-1) x 244(+1/-1) | 11.4 | 113825 | |
| SRC 2+2x4 R20 PRIMED | 8 | 120 x 60 | 532 x 242 x 60 | 534(+1/-1) x 244(+1/-1) | 14.8 | 113826 | |
| SRC 4x1 R20 PRIMED | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.6 | SRC4000020112 | |
| SRC 4x2 R20 PRIMED | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.7 | SRC4000020212 | |
| SRC 4x3 R20 PRIMED | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.6 | SRC4000020312 | |
| SRC 4x4 R20 PRIMED | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.5 | SRC4000020412 | |
| SRC 4x5 R20 PRIMED | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.3 | SRC4000020512 | |
| SRC 4x6 R20 PRIMED | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12.2 | SRC4000020612 | |
| SRC 4x7 R20 PRIMED | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.1 | SRC4000020712 | |
| SRC 4x8 R20 PRIMED | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 16 | SRC4000020812 | |
| SRC 4x9 R20 PRIMED | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 17.9 | SRC4000020912 | |
| SRC 4+4x1 R20 PRIMED | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 4.8 | 5SRC000009354 | |
| SRC 4+4x2 R20 PRIMED | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.3 | SRC4400020212 | |
| SRC 4+4x3 R20 PRIMED | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13.4 | 5SRC000009355 | |
| SRC 4+4x4 R20 PRIMED | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 17.5 | 5SRC000009356 | |
| SRC 4+4x5 R20 PRIMED | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21.5 | 108845 | |
| SRC 4+4x6 R20 PRIMED | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 25.5 | 113846 | |
| SRC 6x1 R20 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | SRC6000020112 | |
| SRC 6x2 R20 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000020212 | |
| SRC 6x3 R20 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000020312 | |
| SRC 6x4 R20 PRIMED | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.8 | SRC6000020412 | |
| SRC 6x5 R20 PRIMED | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 11.9 | SRC6000020512 | |
| SRC 6x6 R20 PRIMED | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | SRC6000020612 | |
| SRC 6x7 R20 PRIMED | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.3 | SRC6000020712 | |
| SRC 6x8 R20 PRIMED | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 18.5 | SRC6000020812 | |
| SRC 6x9 R20 PRIMED | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 20.8 | SRC6000020912 | |
| SRC 6+6x1 R20 PRIMED | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 6 | SRC6600020112 | |
| SRC 6+6x2 R20 PRIMED | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11.1 | 5SRC000006900 | |
| SRC 6+6x3 R20 PRIMED | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 12.6 | SRC6600020312 | |
| SRC 6+6x4 R20 PRIMED | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 17 | 5SRC000006901 | |
| SRC 6+6x5 R20 PRIMED | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 21.4 | 5SRC000008287 | |
| SRC 6+6x6 R20 PRIMED | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 25.7 | 5SRC000012800 | |
| SRC 8x1 R20 PRIMED | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.7 | SRC8000020112 | |
| SRC 8x2 R20 PRIMED | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.1 | SRC8000020212 | |
| SRC 8x3 R20 PRIMED | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.2 | SRC8000020312 | |
| SRC 8x4 R20 PRIMED | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 10.4 | SRC8000020412 | |
| SRC 8x5 R20 PRIMED | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 12.6 | SRC8000020512 | |
| SRC 8x6 R20 PRIMED | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 16.1 | SRC8000020612 | |
| SRC 8+8x1 R20 PRIMED | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 7 | SRC8800020112 | |
| SRC 8+8x2 R20 PRIMED | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 12.8 | 5SRC000007765 | |
| SRC 8+8x3 R20 PRIMED | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 13.3 | 5SRC000007401 | |
| SRC 8+8x4 R20 PRIMED | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 20.8 | 5SRC000008379 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 2x1 R20 AISI316 | 1 | 120 x 60 | 140.5 x 121 x 60 | 143(+1/-1) x 123(+1/-1) | 2 | 5SRC000004700 | |
| SRC 2x2 R20 AISI316 | 2 | 120 x 60 | 271 x 121 x 60 | 273(+1/-1) x 123(+1/-1) | 3.7 | 105848 | |
| SRC 2x3 R20 AISI316 | 3 | 120 x 60 | 401.5 x 121 x 60 | 404(+1/-1) x 123(+1/-1) | 5 | 113900 | |
| SRC 2x4 R20 AISI316 | 4 | 120 x 60 | 532 x 121 x 60 | 534(+1/-1) x 123(+1/-1) | 7.4 | 113901 | |
| SRC 2x5 R20 AISI316 | 5 | 120 x 60 | 662.5 x 121 x 60 | 665(+1/-1) x 123(+1/-1) | 9.1 | 113902 | |
| SRC 2x6 R20 AISI316 | 6 | 120 x 60 | 793 x 121 x 60 | 795(+1/-1) x 123(+1/-1) | 10.8 | 113903 | |
| SRC 2+2x1 R20 AISI316 | 2 | 120 x 60 | 140.5 x 232 x 60 | 143(+1/-1) x 234(+1/-1) | 3.9 | 113908 | |
| SRC 2+2x2 R20 AISI316 | 4 | 120 x 60 | 271 x 242 x 60 | 273(+1/-1) x 244(+1/-1) | 8 | 113909 | |
| SRC 2+2x3 R20 AISI316 | 6 | 120 x 60 | 401.5 x 242 x 60 | 404(+1/-1) x 244(+1/-1) | 11.4 | 113910 | |
| SRC 2+2x4 R20 AISI316 | 8 | 120 x 60 | 532 x 242 x 60 | 534(+1/-1) x 244(+1/-1) | 14.8 | 113911 | |
| SRC 4x1 R20 AISI316 | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.8 | 5SRC000006107 | |
| SRC 4x2 R20 AISI316 | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.7 | 5SRC000006736 | |
| SRC 4x3 R20 AISI316 | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.6 | 5SRC000006971 | |
| SRC 4x4 R20 AISI316 | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.5 | 5SRC000006435 | |
| SRC 4x5 R20 AISI316 | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.3 | 5SRC000006972 | |
| SRC 4x6 R20 AISI316 | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12.2 | 5SRC000006973 | |
| SRC 4x7 R20 AISI316 | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.7 | 113933 | |
| SRC 4x8 R20 AISI316 | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 15.8 | 105892 | |
| SRC 4x9 R20 AISI316 | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 18.7 | 113934 | |
| SRC 4+4x1 R20 AISI316 | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 5 | 113936 | |
| SRC 4+4x2 R20 AISI316 | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.6 | 113937 | |
| SRC 4+4x3 R20 AISI316 | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13 | 5SRC000006668 | |
| SRC 4+4x4 R20 AISI316 | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 16.4 | 5SRC000007495 | |
| SRC 4+4x5 R20 AISI316 | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21.5 | 113938 | |
| SRC 4+4x6 R20 AISI316 | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 24.8 | 113939 | |
| SRC 6x1 R20 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | 5SRC000006106 | |
| SRC 6x2 R20 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | 5SRC000006105 | |
| SRC 6x3 R20 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.6 | 5SRC000006684 | |
| SRC 6x4 R20 AISI316 | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.9 | 5SRC000006685 | |
| SRC 6x5 R20 AISI316 | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 12.1 | 104267 | |
| SRC 6x6 R20 AISI316 | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | 113960 | |
| SRC 6x7 R20 AISI316 | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.5 | 113961 | |
| SRC 6x8 R20 AISI316 | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 19.2 | 113962 | |
| SRC 6x9 R20 AISI316 | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 21.4 | 113963 | |
| SRC 6+6x1 R20 AISI316 | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 5.7 | 5SRC000013682 | |
| SRC 6+6x2 R20 AISI316 | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11 | 5SRC000007413 | |
| SRC 6+6x3 R20 AISI316 | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 15.3 | 5SRC000006686 | |
| SRC 6+6x4 R20 AISI316 | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 19.7 | 113965 | |
| SRC 6+6x5 R20 AISI316 | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 25 | 113966 | |
| SRC 6+6x6 R20 AISI316 | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 30 | 113967 | |
| SRC 8x1 R20 AISI316 | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.8 | 5SRC000012346 | |
| SRC 8x2 R20 AISI316 | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.3 | 5SRC000012347 | |
| SRC 8x3 R20 AISI316 | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.5 | 5SRC000006654 | |
| SRC 8x4 R20 AISI316 | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 11.1 | 5SRC000006655 | |
| SRC 8x5 R20 AISI316 | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 13.9 | 104332 | |
| SRC 8x6 R20 AISI316 | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 16 | 113987 | |
| SRC 8+8x1 R20 AISI316 | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 6.9 | 5SRC000013683 | |
| SRC 8+8x2 R20 AISI316 | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 13 | 104357 | |
| SRC 8+8x3 R20 AISI316 | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 18 | 113992 | |
| SRC 8+8x4 R20 AISI316 | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 23 | 113993 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 2x1 R20 ALU | 1 | 120 x 60 | 140.5 x 121 x 60 | 143(+1/-1) x 123(+1/-1) | 0.7 | 5SRC000004148 | |
| SRC 2x2 R20 ALU | 2 | 120 x 60 | 271 x 121 x 60 | 273(+1/-1) x 123(+1/-1) | 1.3 | 5SRC000010908 | |
| SRC 2x3 R20 ALU | 3 | 120 x 60 | 401.5 x 121 x 60 | 404(+1/-1) x 123(+1/-1) | 2 | 5SRC000010909 | |
| SRC 2x4 R20 ALU | 4 | 120 x 60 | 532 x 121 x 60 | 534(+1/-1) x 123(+1/-1) | 2.6 | 5SRC000010910 | |
| SRC 2x5 R20 ALU | 5 | 120 x 60 | 662.5 x 121 x 60 | 665(+1/-1) x 123(+1/-1) | 3.2 | 5SRC000010911 | |
| SRC 2x6 R20 ALU | 6 | 120 x 60 | 793 x 121 x 60 | 795(+1/-1) x 123(+1/-1) | 3.8 | 119614 | |

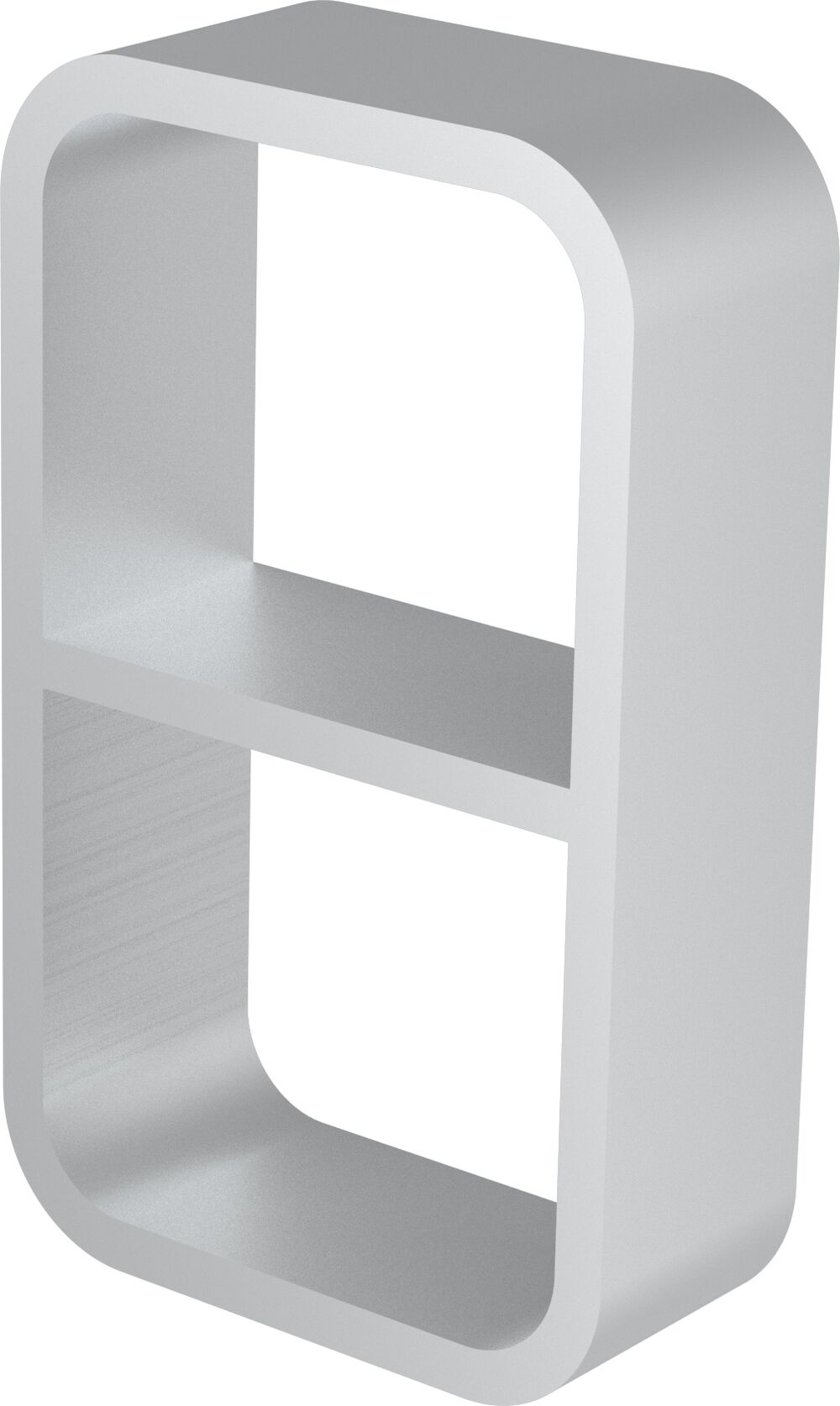

| SRC 2+2x1 R20 ALU | 2 | 120 x 60 | 140.5 x 232 x 60 | 143(+1/-1) x 234(+1/-1) | 1.4 | 119619 | |
| SRC 2+2x2 R20 ALU | 4 | 120 x 60 | 271 x 242 x 60 | 273(+1/-1) x 244(+1/-1) | 2.8 | 119620 | |
| SRC 2+2x3 R20 ALU | 6 | 120 x 60 | 401.5 x 242 x 60 | 404(+1/-1) x 244(+1/-1) | 4 | 119621 | |
| SRC 2+2x4 R20 ALU | 8 | 120 x 60 | 532 x 242 x 60 | 534(+1/-1) x 244(+1/-1) | 5.1 | 119622 | |
| SRC 4x1 R20 ALU | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 0.9 | SRC4000020131 | |
| SRC 4x2 R20 ALU | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 1.6 | 5SRC000004693 | |
| SRC 4x3 R20 ALU | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 2.2 | 106154 | |
| SRC 4x4 R20 ALU | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 3 | 106155 | |
| SRC 4x5 R20 ALU | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 3.7 | 119640 | |
| SRC 4x6 R20 ALU | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 4.4 | 119641 | |
| SRC 4x7 R20 ALU | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 5.1 | 119642 | |
| SRC 4x8 R20 ALU | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 5.8 | 119643 | |
| SRC 4x9 R20 ALU | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 6.5 | 119644 | |
| SRC 4+4x1 R20 ALU | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 1.8 | 119646 | |
| SRC 4+4x2 R20 ALU | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 3.3 | 119647 | |
| SRC 4+4x3 R20 ALU | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 4.7 | 119648 | |
| SRC 4+4x4 R20 ALU | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 6.1 | 119649 | |
| SRC 4+4x5 R20 ALU | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 7.4 | 119650 | |
| SRC 4+4x6 R20 ALU | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 8.8 | 119651 | |
| SRC 6x1 R20 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1.1 | 5SRC000003054 | |
| SRC 6x2 R20 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.9 | 5SRC000004149 | |
| SRC 6x3 R20 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000011726 | |
| SRC 6x4 R20 ALU | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 3.4 | 5SRC000009302 | |
| SRC 6x5 R20 ALU | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 4.2 | 105139 | |
| SRC 6x6 R20 ALU | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 5.1 | 119667 | |
| SRC 6x7 R20 ALU | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 5.8 | 119668 | |
| SRC 6x8 R20 ALU | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 6.6 | 119669 | |
| SRC 6x9 R20 ALU | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 7.4 | 119670 | |
| SRC 6+6x1 R20 ALU | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 2 | 5SRC000007884 | |
| SRC 6+6x2 R20 ALU | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 3.7 | 5SRC000009727 | |
| SRC 6+6x3 R20 ALU | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 5.4 | 119672 | |
| SRC 6+6x4 R20 ALU | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 7 | 119673 | |
| SRC 6+6x5 R20 ALU | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 8.6 | 119674 | |
| SRC 6+6x6 R20 ALU | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 10.1 | 119675 | |
| SRC 8x1 R20 ALU | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 1.3 | 5SRC000004178 | |
| SRC 8x2 R20 ALU | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 2.2 | 5SRC000004150 | |
| SRC 8x3 R20 ALU | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 3 | 106156 | |
| SRC 8x4 R20 ALU | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 3.9 | 5SRC000009301 | |
| SRC 8x5 R20 ALU | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 4.9 | 119691 | |
| SRC 8x6 R20 ALU | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 5.7 | 119692 | |
| SRC 8+8x1 R20 ALU | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 2.4 | 119697 | |
| SRC 8+8x2 R20 ALU | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 4.5 | 119698 | |
| SRC 8+8x3 R20 ALU | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 6.3 | 119699 | |
| SRC 8+8x4 R20 ALU | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 8 | 119700 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 4x1 R40 PRIMED | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.4 | SRC4000040112 | |
| SRC 4x2 R40 PRIMED | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.7 | SRC4000040212 | |
| SRC 4x3 R40 PRIMED | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.6 | SRC4000040312 | |
| SRC 4x4 R40 PRIMED | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.5 | SRC4000040412 | |
| SRC 4x5 R40 PRIMED | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.3 | SRC4000040512 | |
| SRC 4x6 R40 PRIMED | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12.2 | SRC4000040612 | |
| SRC 4x7 R40 PRIMED | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.1 | SRC4000040712 | |
| SRC 4x8 R40 PRIMED | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 16 | SRC4000040812 | |
| SRC 4x9 R40 PRIMED | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 17.9 | SRC4000040912 | |
| SRC 4+4x1 R40 PRIMED | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 5 | 5SRC000009665 | |
| SRC 4+4x2 R40 PRIMED | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.2 | 5SRC000009321 | |
| SRC 4+4x3 R40 PRIMED | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13.1 | 5SRC000007943 | |
| SRC 4+4x4 R40 PRIMED | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 17.4 | 5SRC000007744 | |
| SRC 4+4x5 R40 PRIMED | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21 | 5SRC000007944 | |
| SRC 4+4x6 R40 PRIMED | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 24.9 | 5SRC000007945 | |
| SRC 6x1 R40 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | SRC6000040112 | |
| SRC 6x2 R40 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000040212 | |
| SRC 6x3 R40 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000040312 | |
| SRC 6x4 R40 PRIMED | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.8 | SRC6000040412 | |
| SRC 6x5 R40 PRIMED | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 12 | SRC6000040512 | |
| SRC 6x6 R40 PRIMED | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | SRC6000040612 | |
| SRC 6x7 R40 PRIMED | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.3 | SRC6000040712 | |
| SRC 6x8 R40 PRIMED | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 18.5 | SRC6000040812 | |
| SRC 6x9 R40 PRIMED | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 20.8 | SRC6000040912 | |
| SRC 6+6x1 R40 PRIMED | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 5.7 | 5SRC000006939 | |
| SRC 6+6x2 R40 PRIMED | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11 | 5SRC000007526 | |
| SRC 6+6x3 R40 PRIMED | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 15.6 | 5SRC000007936 | |
| SRC 6+6x4 R40 PRIMED | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 19.6 | 5SRC000006214 | |
| SRC 6+6x5 R40 PRIMED | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 24.6 | 5SRC000007743 | |
| SRC 6+6x6 R40 PRIMED | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 29.5 | 5SRC000007745 | |
| SRC 8x1 R40 PRIMED | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.4 | SRC8000040112 | |
| SRC 8x2 R40 PRIMED | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.1 | SRC8000040212 | |
| SRC 8x3 R40 PRIMED | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.2 | SRC8000040312 | |
| SRC 8x4 R40 PRIMED | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 10.4 | SRC8000040412 | |
| SRC 8x5 R40 PRIMED | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 12.6 | SRC8000040512 | |
| SRC 8x6 R40 PRIMED | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 14.7 | SRC8000040612 | |
| SRC 8+8x1 R40 PRIMED | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 6.8 | 5SRC000009707 | |
| SRC 8+8x2 R40 PRIMED | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 12.5 | 5SRC000010044 | |
| SRC 8+8x3 R40 PRIMED | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 17.6 | 5SRC000009322 | |
| SRC 8+8x4 R40 PRIMED | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 21 | 5SRC000007527 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 4x1 R40 AISI316 | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.4 | 5SRC000006790 | |
| SRC 4x2 R40 AISI316 | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.4 | 110284 | |
| SRC 4x3 R40 AISI316 | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.4 | 110285 | |
| SRC 4x4 R40 AISI316 | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.3 | 110286 | |
| SRC 4x5 R40 AISI316 | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.2 | 114133 | |
| SRC 4x6 R40 AISI316 | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12 | 114134 | |
| SRC 4x7 R40 AISI316 | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.7 | 114135 | |
| SRC 4x8 R40 AISI316 | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 16.7 | 114136 | |
| SRC 4x9 R40 AISI316 | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 18.7 | 110947 | |
| SRC 4+4x1 R40 AISI316 | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 4.5 | 111483 | |
| SRC 4+4x2 R40 AISI316 | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.6 | 111473 | |
| SRC 4+4x3 R40 AISI316 | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13.6 | 111474 | |
| SRC 4+4x4 R40 AISI316 | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 17.5 | 111475 | |
| SRC 4+4x5 R40 AISI316 | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21.5 | 114139 | |
| SRC 4+4x6 R40 AISI316 | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 25.5 | 114140 | |
| SRC 6x1 R40 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | 5SRC000010300 | |
| SRC 6x2 R40 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.1 | 5SRC000010299 | |
| SRC 6x3 R40 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.4 | 5SRC000010298 | |
| SRC 6x4 R40 AISI316 | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.5 | 5SRC000010297 | |
| SRC 6x5 R40 AISI316 | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 11.9 | 109839 | |
| SRC 6x6 R40 AISI316 | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | 109485 | |
| SRC 6x7 R40 AISI316 | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.4 | 110287 | |
| SRC 6x8 R40 AISI316 | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 18 | 104247 | |
| SRC 6x9 R40 AISI316 | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 21.4 | 110948 | |
| SRC 6+6x1 R40 AISI316 | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 5.6 | 111484 | |
| SRC 6+6x2 R40 AISI316 | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11 | 111476 | |
| SRC 6+6x3 R40 AISI316 | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 15.3 | 111477 | |
| SRC 6+6x4 R40 AISI316 | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 21 | 107714 | |
| SRC 6+6x5 R40 AISI316 | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 24.8 | 111478 | |
| SRC 6+6x6 R40 AISI316 | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 29.3 | 111479 | |
| SRC 8x1 R40 AISI316 | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.5 | 5SRC000012330 | |
| SRC 8x2 R40 AISI316 | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.1 | 5SRC000012331 | |
| SRC 8x3 R40 AISI316 | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.6 | 5SRC000012730 | |
| SRC 8x4 R40 AISI316 | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 11.1 | 5SRC000012368 | |
| SRC 8x5 R40 AISI316 | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 13.6 | 5SRC000012731 | |
| SRC 8x6 R40 AISI316 | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 16.1 | 5SRC000012720 | |
| SRC 8+8x1 R40 AISI316 | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 6.6 | 111485 | |
| SRC 8+8x2 R40 AISI316 | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 12.4 | 111480 | |
| SRC 8+8x3 R40 AISI316 | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 17.5 | 110535 | |
| SRC 8+8x4 R40 AISI316 | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 22 | 111481 |
| Product | Frame openings | Packing space (mm) | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|---|
| SRC 4x1 R40 ALU | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 0.8 | 5SRC000003233 | |
| SRC 4x2 R40 ALU | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 1.6 | 5SRC000006359 | |
| SRC 4x3 R40 ALU | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 2.2 | 5SRC000009762 | |
| SRC 4x4 R40 ALU | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 2.9 | 5SRC000009763 | |
| SRC 4x5 R40 ALU | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 3.3 | 5SRC000010915 | |
| SRC 4x6 R40 ALU | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 4.2 | 5SRC000010916 | |
| SRC 4x7 R40 ALU | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 5.1 | 119757 | |
| SRC 4x8 R40 ALU | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 5.8 | 119758 | |
| SRC 4x9 R40 ALU | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 6.5 | 119759 | |
| SRC 4+4x1 R40 ALU | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 1.6 | 119761 | |
| SRC 4+4x2 R40 ALU | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 3.3 | 119762 | |
| SRC 4+4x3 R40 ALU | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 4.7 | 119763 | |
| SRC 4+4x4 R40 ALU | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 6.1 | 119764 | |
| SRC 4+4x5 R40 ALU | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 7.4 | 119765 | |
| SRC 4+4x6 R40 ALU | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 9 | 119766 | |
| SRC 6x1 R40 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1 | 5SRC000003232 | |
| SRC 6x2 R40 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.8 | 5SRC000005649 | |
| SRC 6x3 R40 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000005650 | |
| SRC 6x4 R40 ALU | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 3.6 | 5SRC000005651 | |
| SRC 6x5 R40 ALU | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 4.2 | 5SRC000010917 | |
| SRC 6x6 R40 ALU | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 5.1 | 5SRC000010918 | |
| SRC 6x7 R40 ALU | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 5.8 | 119783 | |
| SRC 6x8 R40 ALU | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 6.6 | 119784 | |
| SRC 6x9 R40 ALU | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 7.4 | 119785 | |
| SRC 6+6x2 R40 ALU | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 3.9 | 119788 | |
| SRC 6+6x3 R40 ALU | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 5.5 | 119789 | |
| SRC 6+6x4 R40 ALU | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 7 | 119790 | |
| SRC 6+6x5 R40 ALU | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 8.6 | 119791 | |
| SRC 6+6x6 R40 ALU | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 10.1 | 119792 | |
| SRC 8x1 R40 ALU | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 1.2 | 5SRC000004309 | |
| SRC 8x3 R40 ALU | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 3 | 5SRC000006085 | |
| SRC 8x4 R40 ALU | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 3.9 | 5SRC000010919 | |
| SRC 8x5 R40 ALU | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 4.6 | 5SRC000010920 | |
| SRC 8+8x1 R40 ALU | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 2.4 | 5SRC000007047 | |
| SRC 8+8x2 R40 ALU | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 4.5 | 119811 | |
| SRC 8+8x3 R40 ALU | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 6 | 5SRC000006112 | |
| SRC 8+8x4 R40 ALU | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 8 | 119812 |
