Passage étanche doté de l'indice de protection IP 55 avec un cadre en aluminium.
Le Roxtec ComSeal™ est classé IP 55 et il est disponible avec un cadre en aluminium peinture epoxy ou en acier inoxydable AISI 316. Le passage est disponible dans six tailles différentes pour accueillir jusqu'à 32 câbles.
- Résistant aux rongeurs
- Résistant à la corrosion
- Léger
- Surface optimisée
Télécharger
![](https://cdn.content-publisher.roxtec.com/images/image:2177/2526__MG_0461_ComSeal_10_10.jpg)
Télécharger
Classements et certificats
Les certificats sont continuellement ajoutés, renouvelés et remplacés. Veuillez vérifier régulièrement pour assurer la conformité.
Installation
Structure de l'installation
-
Armoires et coffrets
Instructions d'installation
Plans techniques
Plans techniques
Solutions d'étanchéité pour votre secteur
Explorez la multitude d'applications où vous pouvez bénéficier de nos solutions.
Données sur les éléments d'étanchéité
Vous trouverez des informations techniques sur chaque pièce spécifique de notre système.
Cadres rectangulaires
Eléments d'étanchéité
Kits de passage préconfigurés
Acier inoxydable
![](https://cdn.content-publisher.roxtec.com/images/image:8345/3210_ComSeal_16_4 AISI.jpg)
ComSeal 16/4 AISI316
- Configuration 4x (9.5-32.5)
- Dimensions externes LxHxP (mm) 81 x 233 x 33
- Dimensions d'ouverture LxH (mm) 58.5(+1/-1) x 211(+1/-1)
- Poids (kg) 1.5
- N° art. 105679
![](https://cdn.content-publisher.roxtec.com/images/image:8346/3211_ComSeal_16_7 AISI.jpg)
ComSeal 16/7 AISI316
- Configuration 3x (9.5-32.5), 4x (3.5-16.5)
- Dimensions externes LxHxP (mm) 81 x 233 x 33
- Dimensions d'ouverture LxH (mm) 58.5(+1/-1) x 211(+1/-1)
- Poids (kg) 1.5
- N° art. 105680
![](https://cdn.content-publisher.roxtec.com/images/image:8347/3212_ComSeal_16_10 AISI.jpg)
ComSeal 16/10 AISI316
- Configuration 2x (9.5-32.5), 8x (3.5-16.5)
- Dimensions externes LxHxP (mm) 81 x 233 x 33
- Dimensions d'ouverture LxH (mm) 58.5(+1/-1) x 211(+1/-1)
- Poids (kg) 1.5
- N° art. 105681
Aluminium peint à la poudre
![](https://cdn.content-publisher.roxtec.com/images/image:8132/3072_Roxtec ComSeal 10_4.jpg)

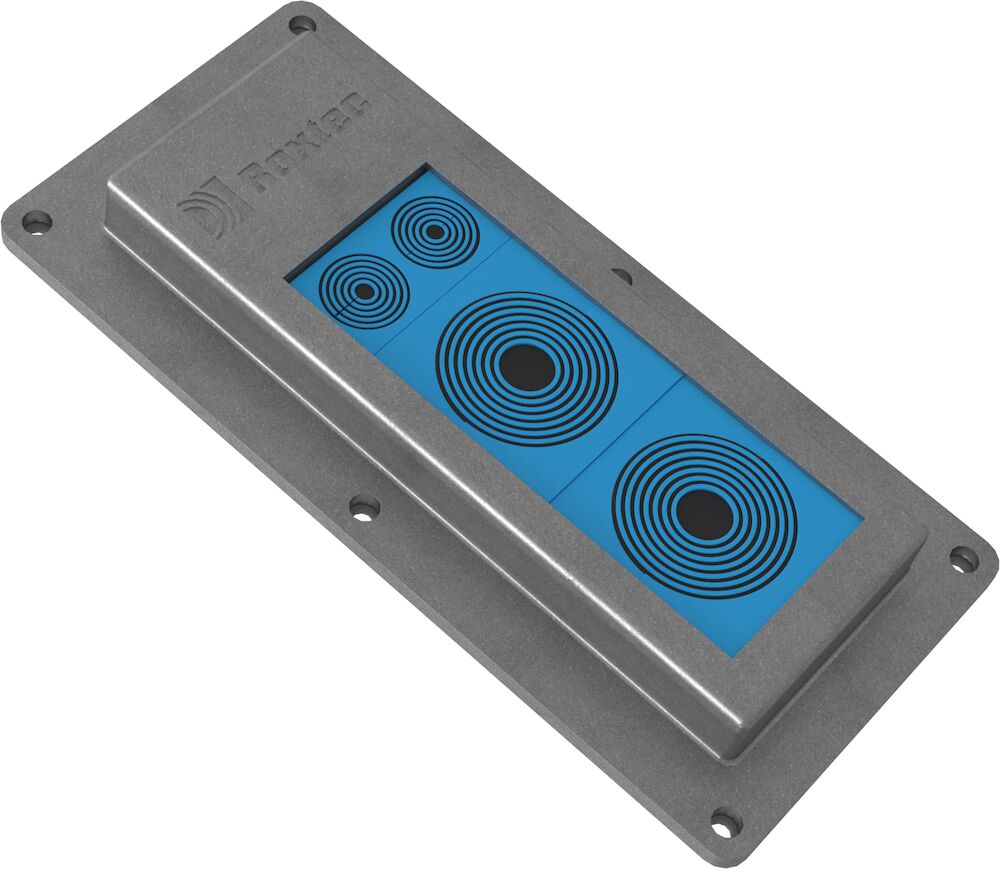

ComSeal 10/4
- Configuration 2x (9.5-32.5), 2x (3.5-16.5)
- Dimensions externes LxHxP (mm) 80.5 x 173 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 149(+1/-1)
- Poids (kg) 0.6
- N° art. 105299
![](https://cdn.content-publisher.roxtec.com/images/image:8133/3073_Roxtec ComSeal 10_7.jpg)

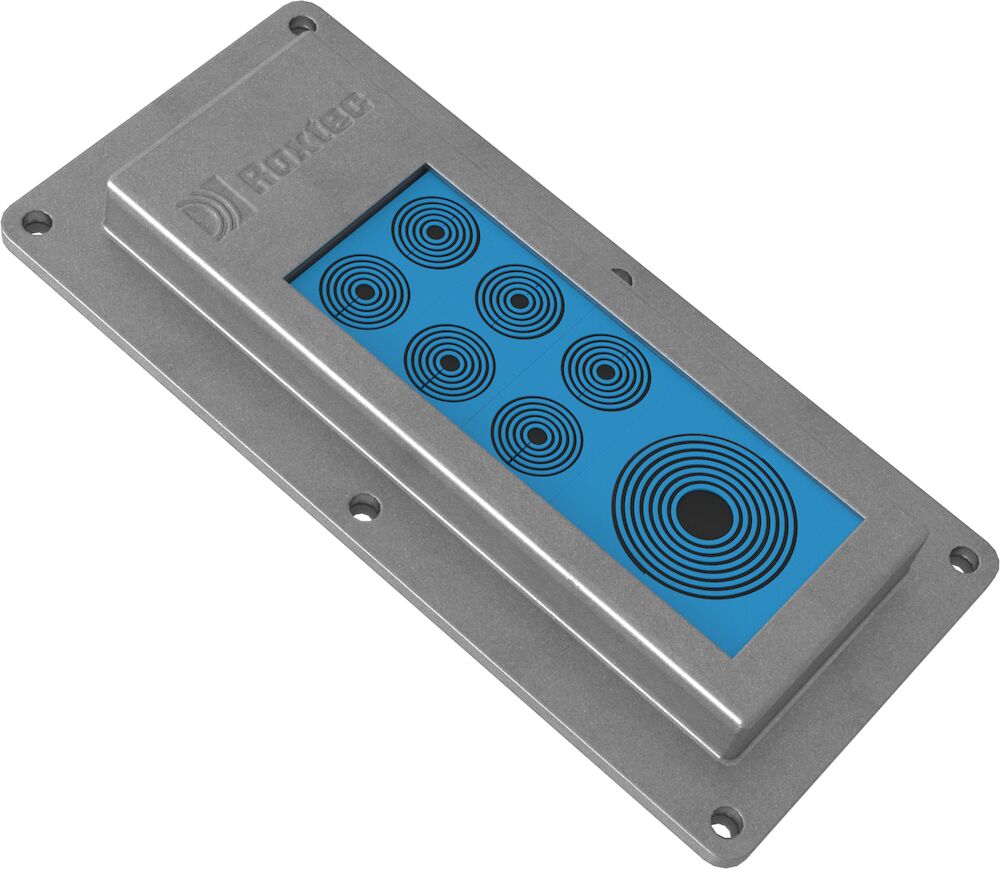

ComSeal 10/7
- Configuration 6x (3.5-16.5), 1x (9.5-32.5)
- Dimensions externes LxHxP (mm) 80.5 x 173 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 149(+1/-1)
- Poids (kg) 0.6
- N° art. 105301
![](https://cdn.content-publisher.roxtec.com/images/image:202/523939_00202_res.jpg)

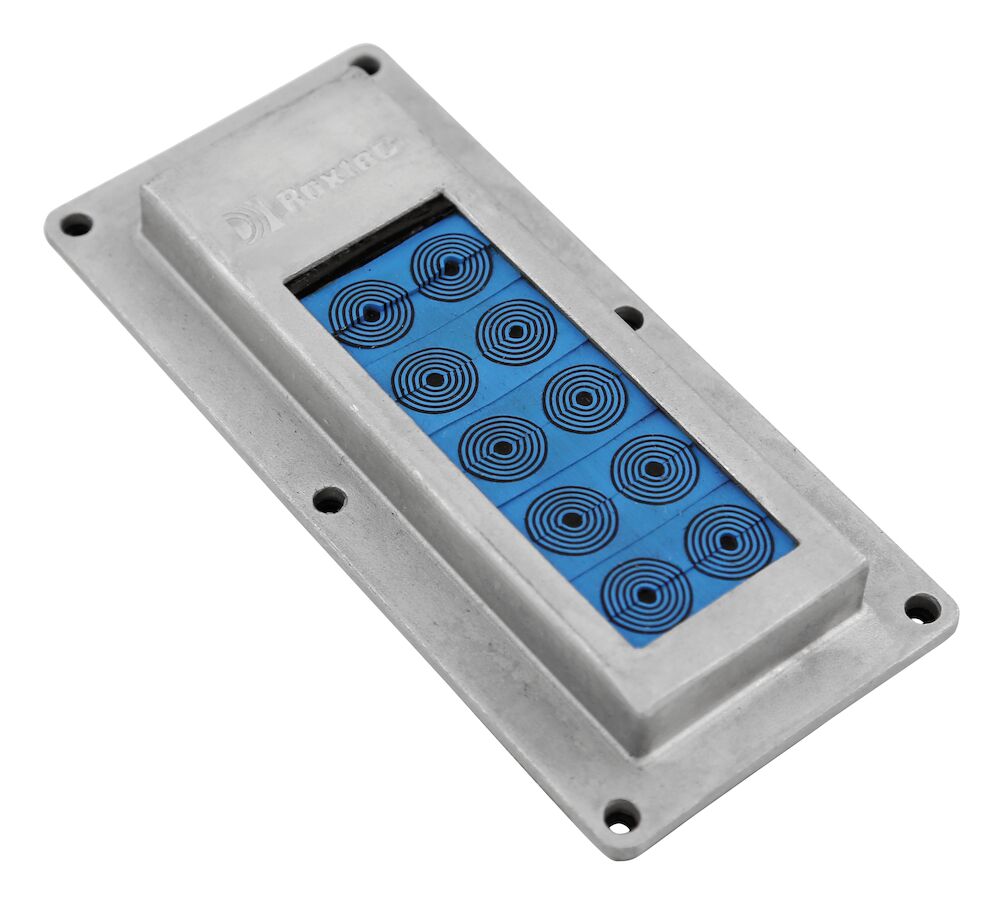

ComSeal 10/10
- Configuration 10x (3.5-16.5)
- Dimensions externes LxHxP (mm) 80.5 x 173 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 149(+1/-1)
- Poids (kg) 0.6
- N° art. 105302
![](https://cdn.content-publisher.roxtec.com/images/image:8135/3075_Roxtec ComSeal 12_3.jpg)
ComSeal 12/3
- Configuration 3x (9.5-32.5)
- Dimensions externes LxHxP (mm) 88 x 216 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 169(+1/-1)
- Poids (kg) 0.8
- N° art. 105303
![](https://cdn.content-publisher.roxtec.com/images/image:8136/3076_Roxtec ComSeal 12_6.jpg)
ComSeal 12/6
- Configuration 2x (9.5-32.5), 4x (3.5-16.5)
- Dimensions externes LxHxP (mm) 88 x 216 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 169(+1/-1)
- Poids (kg) 0.8
- N° art. 105305
![](https://cdn.content-publisher.roxtec.com/images/image:8137/3077_Roxtec ComSeal 12_9.jpg)
ComSeal 12/9
- Configuration 8x (3.5-16.5), 1x (9.5-32.5)
- Dimensions externes LxHxP (mm) 88 x 216 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 169(+1/-1)
- Poids (kg) 0.8
- N° art. 105306
![](https://cdn.content-publisher.roxtec.com/images/image:261/523940_00261_res.jpg)
ComSeal 12/12
- Configuration 12x (3.5-16.5)
- Dimensions externes LxHxP (mm) 88 x 216 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 169(+1/-1)
- Poids (kg) 0.8
- N° art. 105307
![](https://cdn.content-publisher.roxtec.com/images/image:247/523941_00247_res.jpg)
ComSeal 15/3
- Configuration 3x (28.0-44.0)
- Dimensions externes LxHxP (mm) 90.5 x 223 x 55
- Dimensions d'ouverture LxH (mm) 61(+1/-1) x 195(+1/-1)
- Poids (kg) 0.9
- N° art. 105308
![](https://cdn.content-publisher.roxtec.com/images/image:8140/3080_Roxtec ComSeal 16_4.jpg)
ComSeal 16/4
- Configuration 4x (9.5-32.5)
- Dimensions externes LxHxP (mm) 80.5 x 233 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 209(+1/-1)
- Poids (kg) 0.8
- N° art. 105310
![](https://cdn.content-publisher.roxtec.com/images/image:8141/3081_Roxtec ComSeal 16_7.jpg)
ComSeal 16/7
- Configuration 3x (9.5-32.5), 4x (3.5-16.5)
- Dimensions externes LxHxP (mm) 80.5 x 233 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 209(+1/-1)
- Poids (kg) 0.8
- N° art. 105312
![](https://cdn.content-publisher.roxtec.com/images/image:8361/3226_ComSeal_16_10.jpg)
ComSeal 16/10
- Configuration 2x (9.5-32.5), 8x (3.5-16.5)
- Dimensions externes LxHxP (mm) 80.5 x 233 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 209(+1/-1)
- Poids (kg) 0.8
- N° art. 105313
![](https://cdn.content-publisher.roxtec.com/images/image:203/523942_00203_res.jpg)
ComSeal 16/16
- Configuration 16x (3.5-16.5)
- Dimensions externes LxHxP (mm) 80.5 x 233 x 55
- Dimensions d'ouverture LxH (mm) 56(+1/-1) x 209(+1/-1)
- Poids (kg) 0.8
- N° art. 105314
![](https://cdn.content-publisher.roxtec.com/images/image:257/523944_1508_00257_res.jpg)

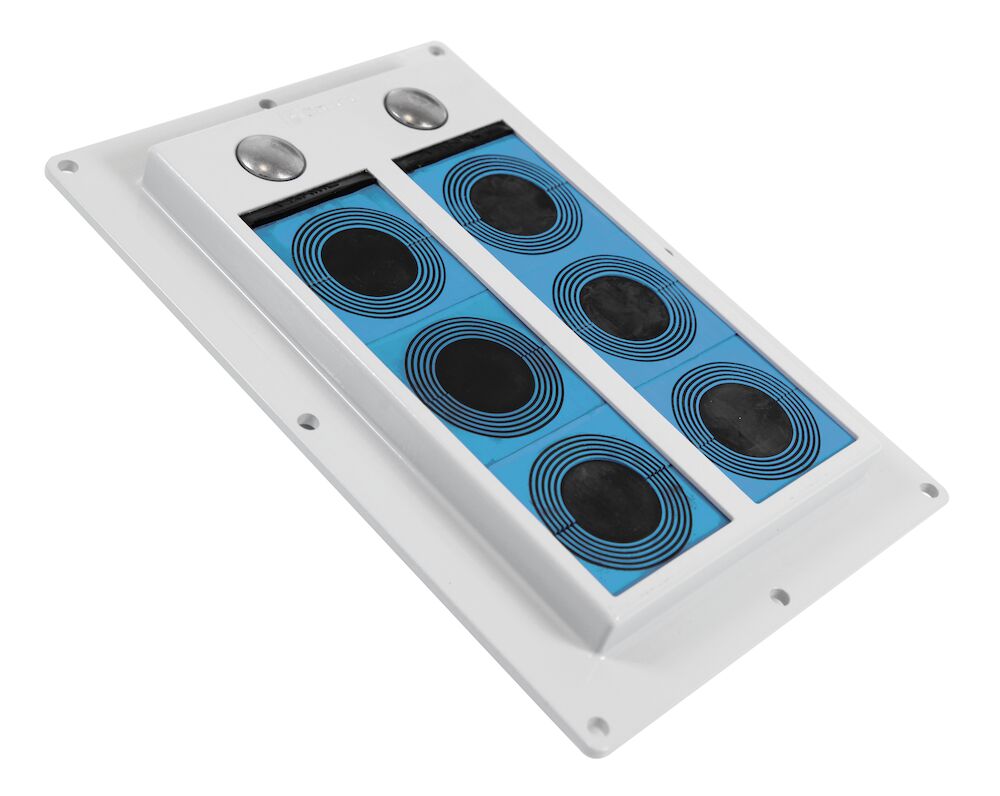

ComSeal 30/6
- Configuration 6x (28.0-44.0)
- Dimensions externes LxHxP (mm) 155 x 231 x 55
- Dimensions d'ouverture LxH (mm) 120(+1/-1) x 195(+1/-1)
- Poids (kg) 1.6
- N° art. 105315

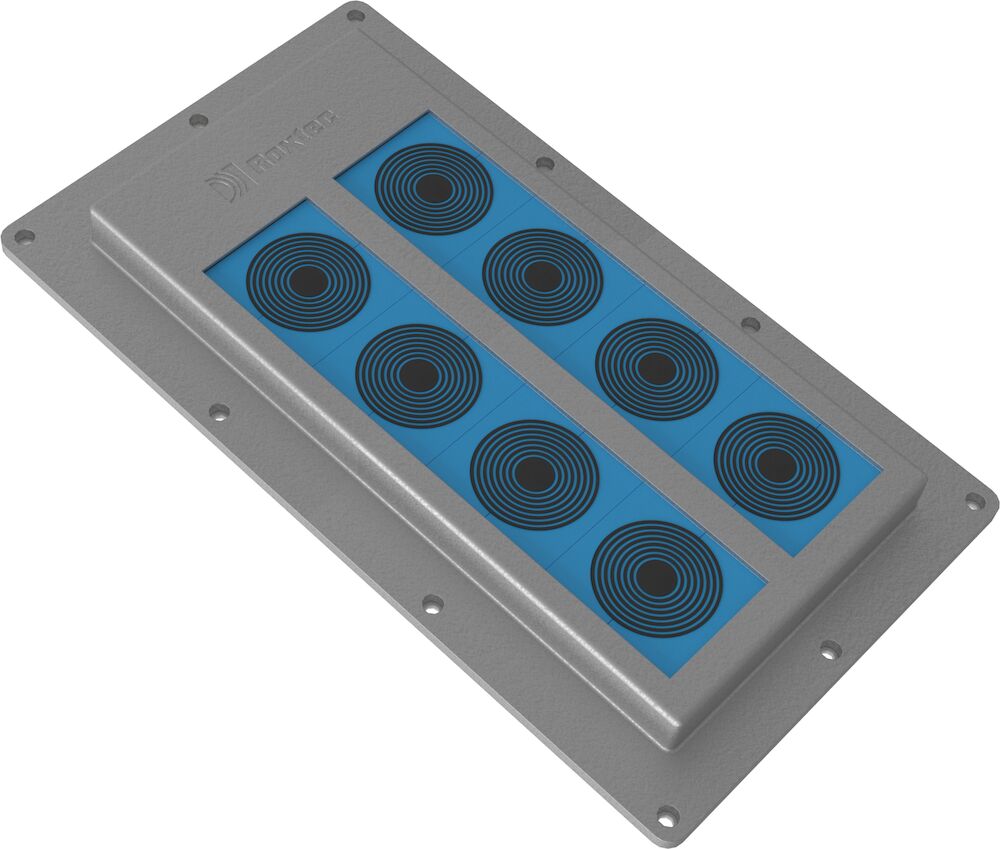

![](https://cdn.content-publisher.roxtec.com/images/image:8144/3084_Roxtec ComSeal 32_8.jpg)
ComSeal 32/8
- Configuration 8x (9.5-32.5)
- Dimensions externes LxHxP (mm) 135 x 241 x 55
- Dimensions d'ouverture LxH (mm) 103(+1/-1) x 209(+1/-1)
- Poids (kg) 1.4
- N° art. 105316
![](https://cdn.content-publisher.roxtec.com/images/image:8145/3085_Roxtec ComSeal 32_14.jpg)
ComSeal 32/14
- Configuration 6x (9.5-32.5), 8x (3.5-16.5)
- Dimensions externes LxHxP (mm) 135 x 241 x 55
- Dimensions d'ouverture LxH (mm) 103(+1/-1) x 209(+1/-1)
- Poids (kg) 1.4
- N° art. 105320

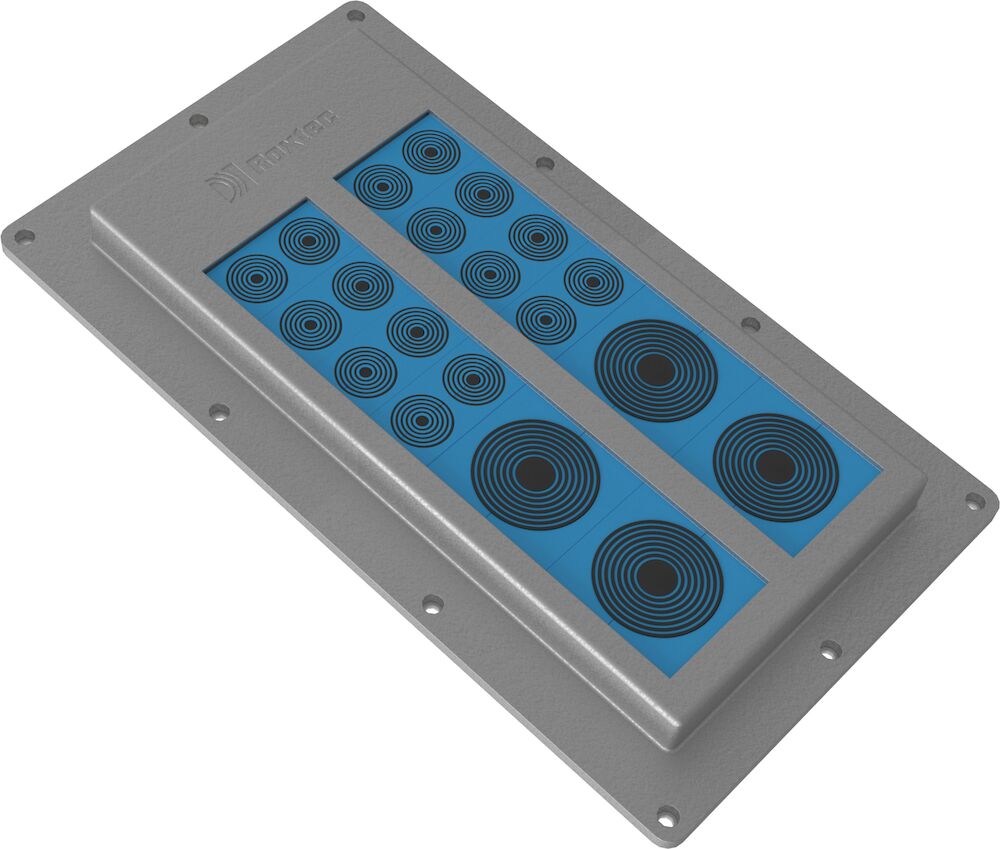

![](https://cdn.content-publisher.roxtec.com/images/image:8146/3086_Roxtec ComSeal 32_20.jpg)
ComSeal 32/20
- Configuration 4x (9.5-32.5), 16x (3.5-16.5)
- Dimensions externes LxHxP (mm) 135 x 241 x 55
- Dimensions d'ouverture LxH (mm) 103(+1/-1) x 209(+1/-1)
- Poids (kg) 1.4
- N° art. 105321

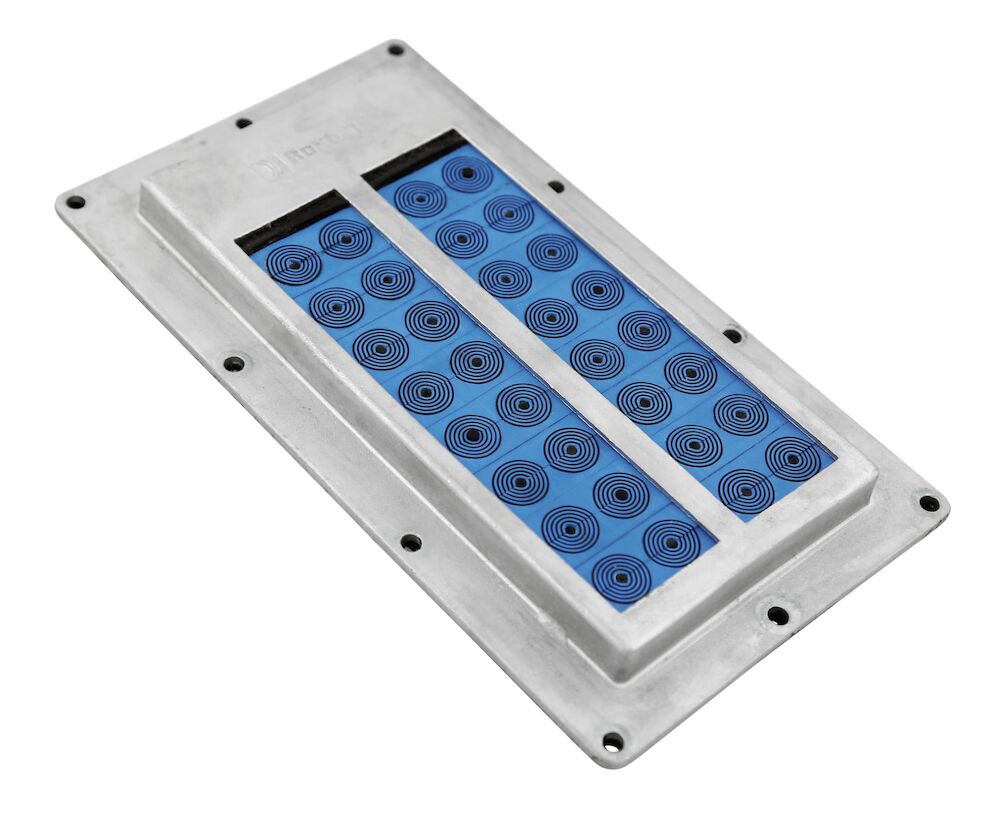

![](https://cdn.content-publisher.roxtec.com/images/image:204/523943_00204_res.jpg)
ComSeal 32/32
- Configuration 32x (3.5-16.5)
- Dimensions externes LxHxP (mm) 135 x 241 x 55
- Dimensions d'ouverture LxH (mm) 103(+1/-1) x 209(+1/-1)
- Poids (kg) 1.4
- N° art. 105322
Produit | Configuration | Dimensions externes LxHxP (mm) | Dimensions d'ouverture LxH (mm) | Poids (kg) | N° art. | |
---|---|---|---|---|---|---|
ComSeal 16/4 AISI316 | 4x (9.5-32.5) | 81 x 233 x 33 | 58.5(+1/-1) x 211(+1/-1) | 1.5 | 105679 | |
ComSeal 16/7 AISI316 | 3x (9.5-32.5), 4x (3.5-16.5) | 81 x 233 x 33 | 58.5(+1/-1) x 211(+1/-1) | 1.5 | 105680 | |
ComSeal 16/10 AISI316 | 2x (9.5-32.5), 8x (3.5-16.5) | 81 x 233 x 33 | 58.5(+1/-1) x 211(+1/-1) | 1.5 | 105681 |
Produit | Configuration | Dimensions externes LxHxP (mm) | Dimensions d'ouverture LxH (mm) | Poids (kg) | N° art. | |
---|---|---|---|---|---|---|
ComSeal 10/4 | 2x (9.5-32.5), 2x (3.5-16.5) | 80.5 x 173 x 55 | 56(+1/-1) x 149(+1/-1) | 0.6 | 105299 | |
ComSeal 10/7 | 6x (3.5-16.5), 1x (9.5-32.5) | 80.5 x 173 x 55 | 56(+1/-1) x 149(+1/-1) | 0.6 | 105301 | |
ComSeal 10/10 | 10x (3.5-16.5) | 80.5 x 173 x 55 | 56(+1/-1) x 149(+1/-1) | 0.6 | 105302 | |
ComSeal 12/3 | 3x (9.5-32.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | 105303 | |
ComSeal 12/6 | 2x (9.5-32.5), 4x (3.5-16.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | 105305 | |
ComSeal 12/9 | 8x (3.5-16.5), 1x (9.5-32.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | 105306 | |
ComSeal 12/12 | 12x (3.5-16.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | 105307 | |
ComSeal 15/3 | 3x (28.0-44.0) | 90.5 x 223 x 55 | 61(+1/-1) x 195(+1/-1) | 0.9 | 105308 | |
ComSeal 16/4 | 4x (9.5-32.5) | 80.5 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.8 | 105310 | |
ComSeal 16/7 | 3x (9.5-32.5), 4x (3.5-16.5) | 80.5 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.8 | 105312 | |
ComSeal 16/10 | 2x (9.5-32.5), 8x (3.5-16.5) | 80.5 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.8 | 105313 | |
ComSeal 16/16 | 16x (3.5-16.5) | 80.5 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.8 | 105314 | |
ComSeal 30/6 | 6x (28.0-44.0) | 155 x 231 x 55 | 120(+1/-1) x 195(+1/-1) | 1.6 | 105315 | |
ComSeal 32/8 | 8x (9.5-32.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.4 | 105316 | |
ComSeal 32/14 | 6x (9.5-32.5), 8x (3.5-16.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.4 | 105320 | |
ComSeal 32/20 | 4x (9.5-32.5), 16x (3.5-16.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.4 | 105321 | |
ComSeal 32/32 | 32x (3.5-16.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.4 | 105322 |
