Roxtec CM modules are 40 mm (1.575") deep and easily adapted to cables and pipes of different sizes. When used with a solid core, the module functions as a spare module for future capacity. The BG version is used for bonding and grounding of armored and metal-clad cables.
- To be used with corresponding Roxtec components to form a complete sealing solution
- For cables and pipes 3.5-34.5 mm (0.138"-1.358") OD
Technical drawings
Installation instructions
Component articles
CM 20w40 BG B
- External dimensions WxHxD (mm) 40 x 20 x 40
- Number of cables/pipes 2
- For cable/pipe Ø (mm) 3.5 - 16.5
- Weight (kg) 0.05
- Art. No 103375

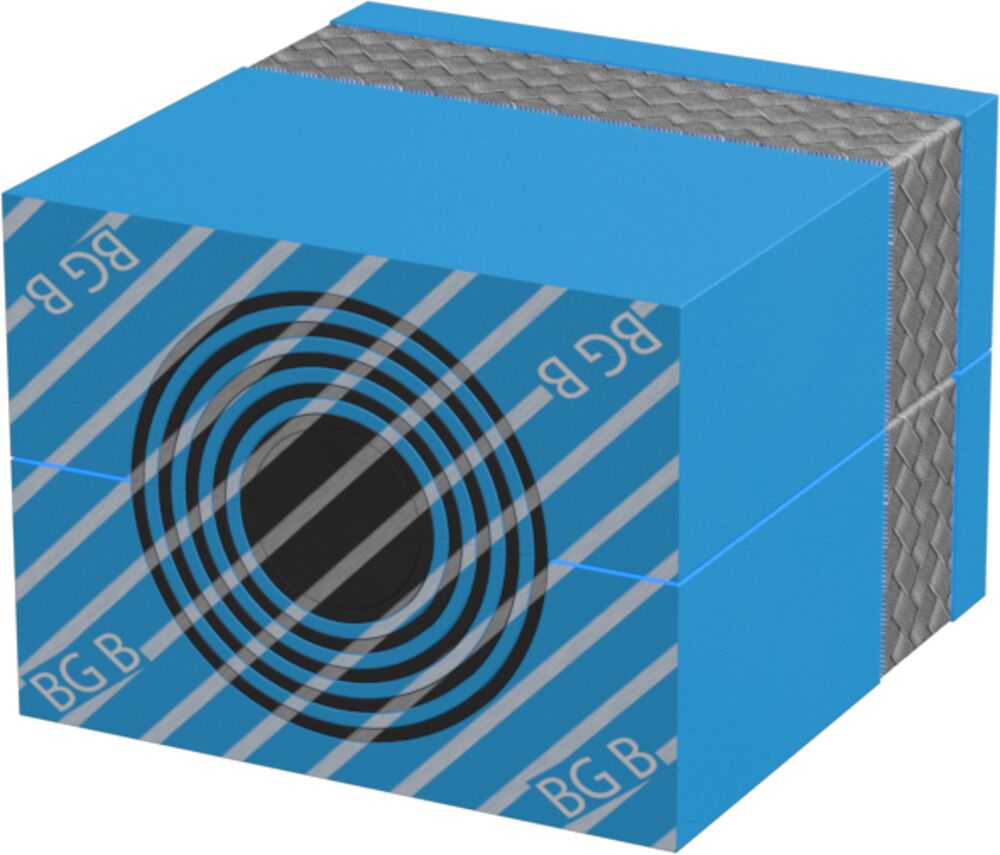

CM 30w40 BG B
- External dimensions WxHxD (mm) 40 x 30 x 40
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.08
- Art. No 103379
CM 40 10-32 BG B
- External dimensions WxHxD (mm) 40 x 40 x 40
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 9.5 - 32.5
- Weight (kg) 0.1
- Art. No 103381
| Product | External dimensions WxHxD (mm) | Number of cables/pipes | For cable/pipe Ø (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|
| CM 20w40 BG B | 40 x 20 x 40 | 2 | 3.5 - 16.5 | 0.05 | 103375 | |
| CM 30w40 BG B | 40 x 30 x 40 | 1 | 10 - 25 | 0.08 | 103379 | |
| CM 40 10-32 BG B | 40 x 40 x 40 | 1 | 9.5 - 32.5 | 0.1 | 103381 |
