Roxtec SRC-rammen er en metalramme til lastbærende konstruktioner. Den er designet med afrundede hjørner for at reducere spændingskoncentration og risikoen for revner omkring rammen. Den fås i forskellige materialer.
- Den udgør sammen med tilhørende Roxtec-komponenter en komplet tætningsløsning
- Monteres ved svejsning
- Fås i to udgaver: SRC r20 og SRC r40
Tekniske tegninger
Monteringsvejledninger
Certifikater
Produkter
De foreslåede tætningsløsninger er omkostningseffektive standardløsninger. Udvælg de tætningsløsninger der dækker dit behov, minimér lead time og reducer behovet for lageropbevaring.
SRC R20, grundet stål
SRC R20, rustfrit stål
SRC R20, aluminium
SRC R40, grundet stål
SRC R40, rustfrit stål
SRC R40, aluminium
SRC R20, grundet stål
SRC R20, rustfrit stål
SRC R20, aluminium
SRC R40, grundet stål
SRC R40, rustfrit stål
SRC R40, aluminium
De foreslåede tætningsløsninger er omkostningseffektive standardløsninger. Udvælg de tætningsløsninger der dækker dit behov, minimér lead time og reducer behovet for lageropbevaring.
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R20 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | SRC6000020112 | |
| SRC 6x2 R20 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000020212 | |
| SRC 6x3 R20 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000020312 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R20 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | 5SRC000006106 | |
| SRC 6x2 R20 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | 5SRC000006105 | |
| SRC 6x3 R20 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.6 | 5SRC000006684 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R20 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1.1 | 5SRC000003054 | |
| SRC 6x2 R20 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.9 | 5SRC000004149 | |
| SRC 6x3 R20 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000011726 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R40 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | SRC6000040112 | |
| SRC 6x2 R40 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000040212 | |
| SRC 6x3 R40 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000040312 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R40 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | 5SRC000010300 | |
| SRC 6x2 R40 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.1 | 5SRC000010299 | |
| SRC 6x3 R40 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.4 | 5SRC000010298 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 6x1 R40 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1 | 5SRC000003232 | |
| SRC 6x2 R40 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.8 | 5SRC000005649 | |
| SRC 6x3 R40 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000005650 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 2x1 R20 PRIMED | 1 | 120 x 60 | 140.5 x 121 x 60 | 143(+1/-1) x 123(+1/-1) | 2 | SRC2000020112 | |
| SRC 2x2 R20 PRIMED | 2 | 120 x 60 | 271 x 121 x 60 | 273(+1/-1) x 123(+1/-1) | 3.9 | SRC2000020212 | |
| SRC 2x3 R20 PRIMED | 3 | 120 x 60 | 401.5 x 121 x 60 | 404(+1/-1) x 123(+1/-1) | 5.5 | SRC2000020312 | |
| SRC 2x4 R20 PRIMED | 4 | 120 x 60 | 532 x 121 x 60 | 534(+1/-1) x 123(+1/-1) | 7.1 | SRC2000020412 | |
| SRC 2x5 R20 PRIMED | 5 | 120 x 60 | 662.5 x 121 x 60 | 665(+1/-1) x 123(+1/-1) | 8.7 | SRC2000020512 | |
| SRC 2x6 R20 PRIMED | 6 | 120 x 60 | 793 x 121 x 60 | 795(+1/-1) x 123(+1/-1) | 10.3 | SRC2000020612 | |

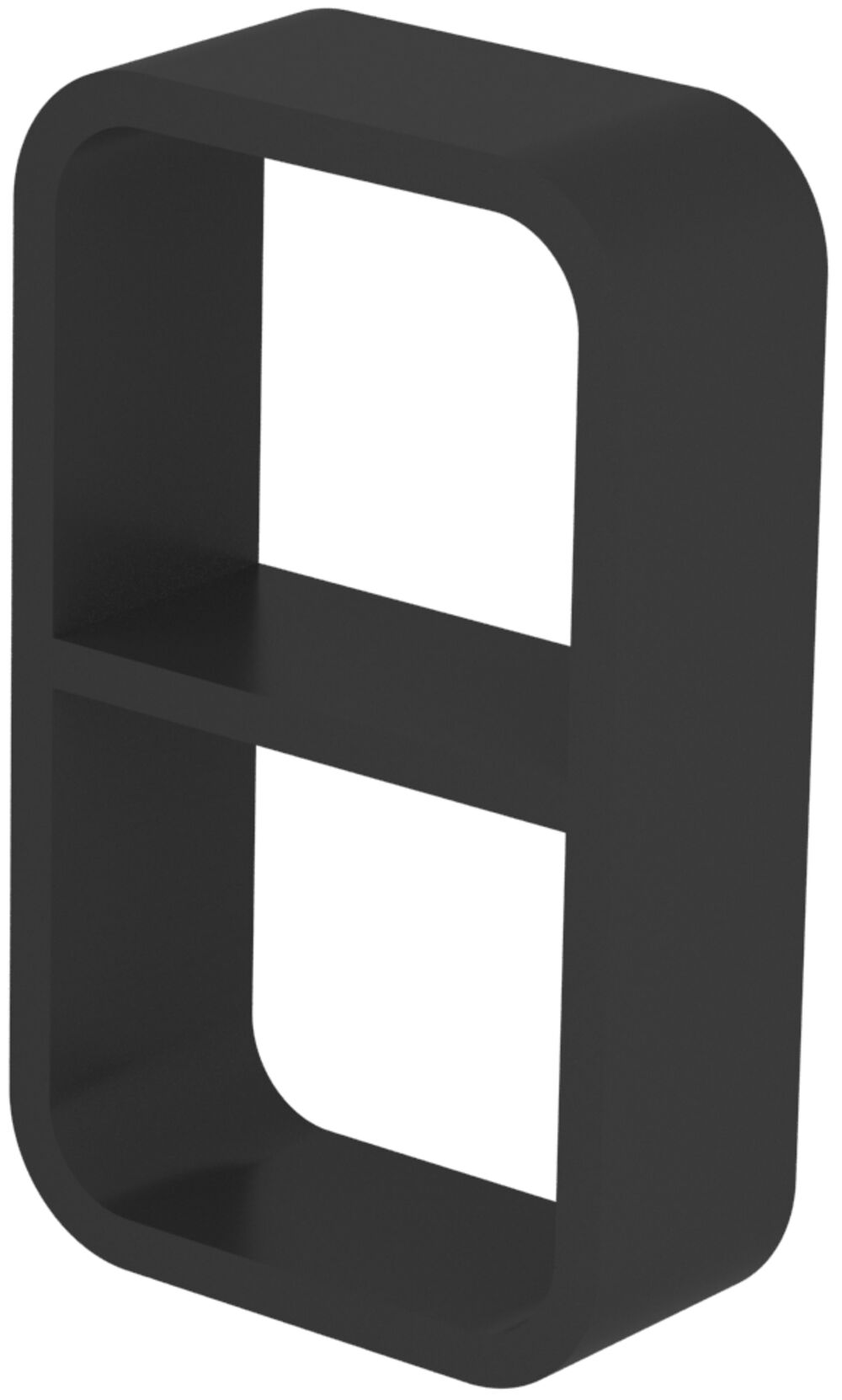

| SRC 2+2x1 R20 PRIMED | 2 | 120 x 60 | 140.5 x 232 x 60 | 143(+1/-1) x 234(+1/-1) | 3.9 | 113823 | |

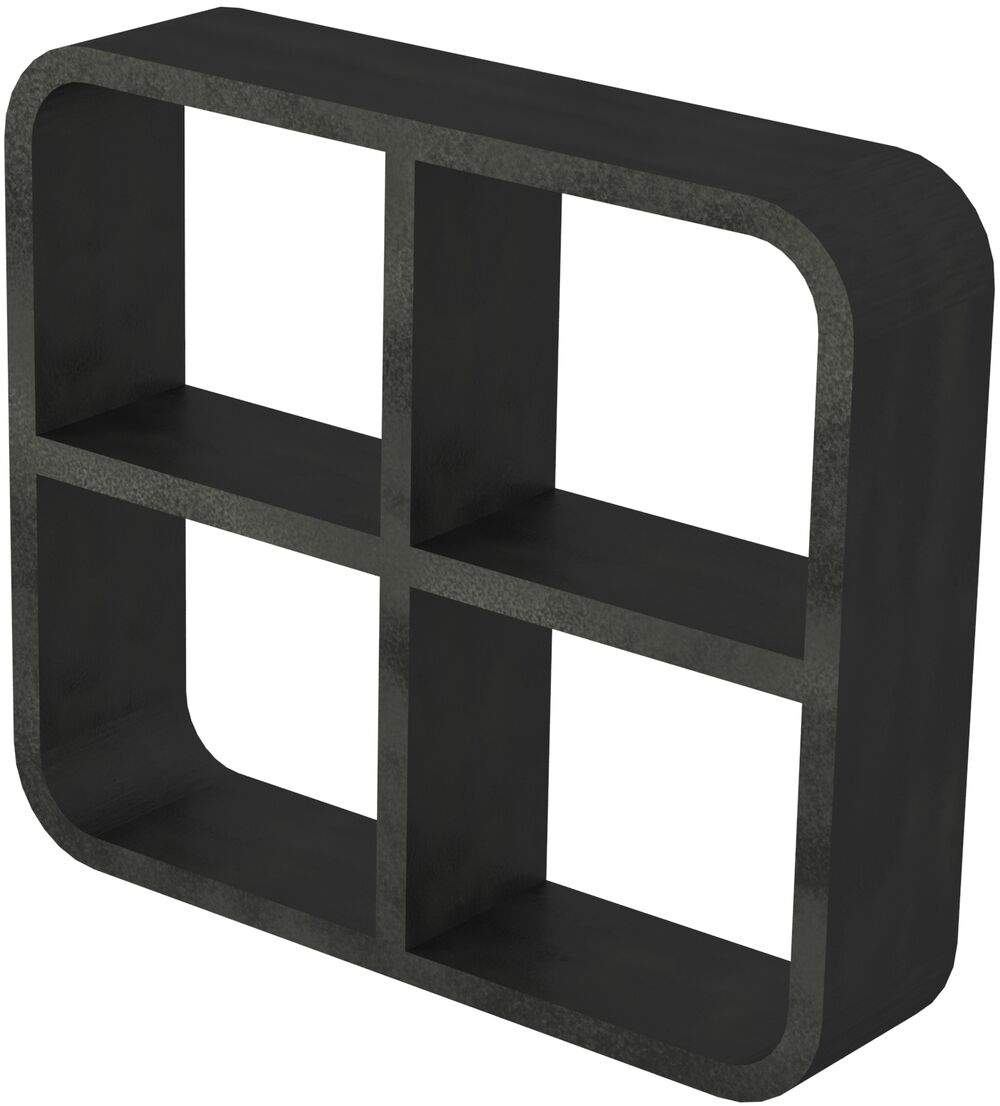

| SRC 2+2x2 R20 PRIMED | 4 | 120 x 60 | 271 x 242 x 60 | 273(+1/-1) x 244(+1/-1) | 8 | 113824 | |

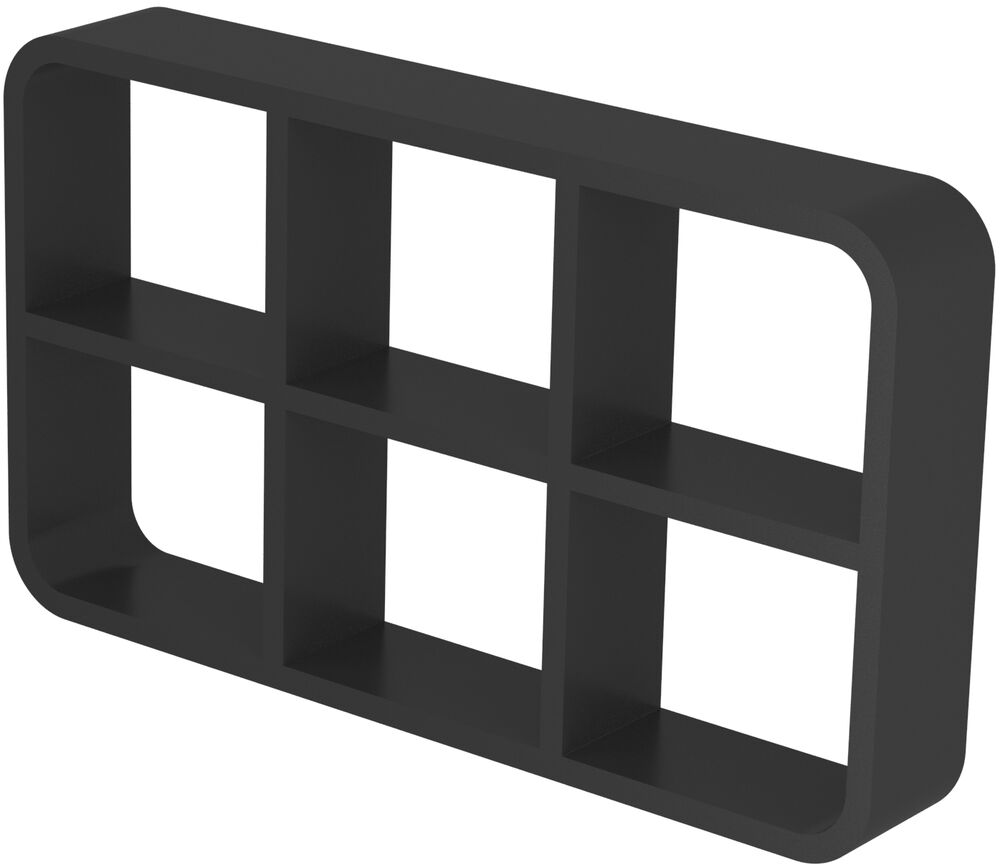

| SRC 2+2x3 R20 PRIMED | 6 | 120 x 60 | 401.5 x 242 x 60 | 404(+1/-1) x 244(+1/-1) | 11.4 | 113825 | |

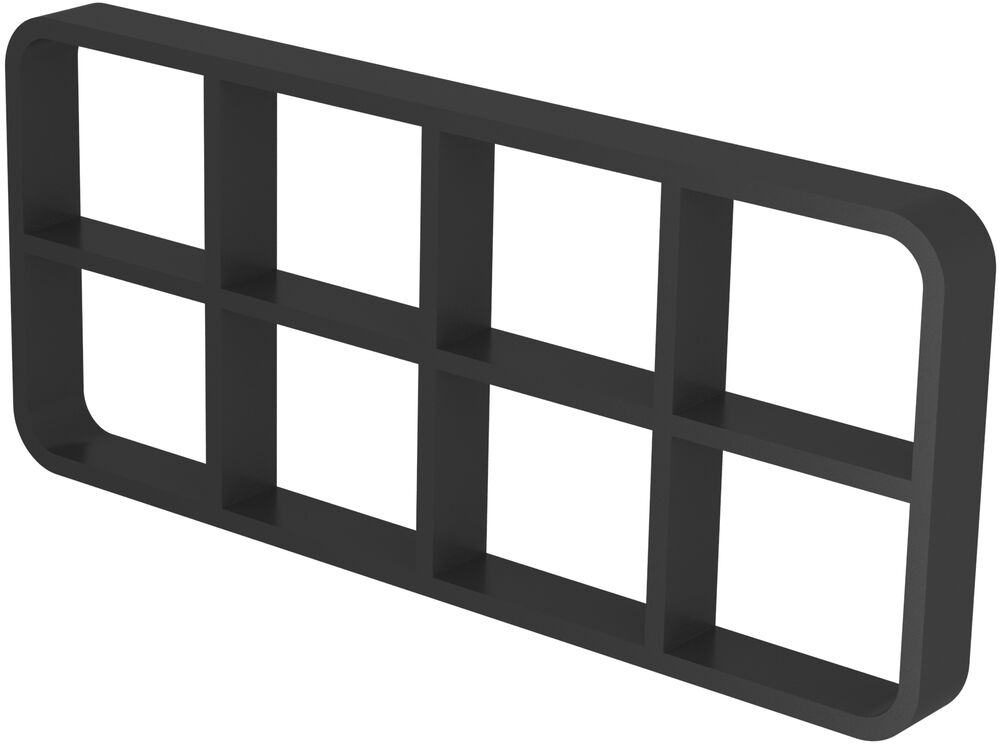

| SRC 2+2x4 R20 PRIMED | 8 | 120 x 60 | 532 x 242 x 60 | 534(+1/-1) x 244(+1/-1) | 14.8 | 113826 | |
| SRC 4x1 R20 PRIMED | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.6 | SRC4000020112 | |
| SRC 4x2 R20 PRIMED | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.7 | SRC4000020212 | |
| SRC 4x3 R20 PRIMED | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.6 | SRC4000020312 | |
| SRC 4x4 R20 PRIMED | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.5 | SRC4000020412 | |
| SRC 4x5 R20 PRIMED | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.3 | SRC4000020512 | |
| SRC 4x6 R20 PRIMED | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12.2 | SRC4000020612 | |
| SRC 4x7 R20 PRIMED | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.1 | SRC4000020712 | |
| SRC 4x8 R20 PRIMED | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 16 | SRC4000020812 | |
| SRC 4x9 R20 PRIMED | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 17.9 | SRC4000020912 | |
| SRC 4+4x1 R20 PRIMED | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 4.8 | 5SRC000009354 | |
| SRC 4+4x2 R20 PRIMED | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.3 | SRC4400020212 | |
| SRC 4+4x3 R20 PRIMED | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13.4 | 5SRC000009355 | |
| SRC 4+4x4 R20 PRIMED | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 17.5 | 5SRC000009356 | |
| SRC 4+4x5 R20 PRIMED | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21.5 | 108845 | |
| SRC 4+4x6 R20 PRIMED | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 25.5 | 113846 | |
| SRC 6x1 R20 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | SRC6000020112 | |
| SRC 6x2 R20 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000020212 | |
| SRC 6x3 R20 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000020312 | |
| SRC 6x4 R20 PRIMED | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.8 | SRC6000020412 | |
| SRC 6x5 R20 PRIMED | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 11.9 | SRC6000020512 | |
| SRC 6x6 R20 PRIMED | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | SRC6000020612 | |
| SRC 6x7 R20 PRIMED | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.3 | SRC6000020712 | |
| SRC 6x8 R20 PRIMED | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 18.5 | SRC6000020812 | |
| SRC 6x9 R20 PRIMED | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 20.8 | SRC6000020912 | |
| SRC 6+6x1 R20 PRIMED | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 6 | SRC6600020112 | |
| SRC 6+6x2 R20 PRIMED | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11.1 | 5SRC000006900 | |
| SRC 6+6x3 R20 PRIMED | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 12.6 | SRC6600020312 | |
| SRC 6+6x4 R20 PRIMED | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 17 | 5SRC000006901 | |
| SRC 6+6x5 R20 PRIMED | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 21.4 | 5SRC000008287 | |
| SRC 6+6x6 R20 PRIMED | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 25.7 | 5SRC000012800 | |
| SRC 8x1 R20 PRIMED | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.7 | SRC8000020112 | |
| SRC 8x2 R20 PRIMED | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.1 | SRC8000020212 | |
| SRC 8x3 R20 PRIMED | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.2 | SRC8000020312 | |
| SRC 8x4 R20 PRIMED | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 10.4 | SRC8000020412 | |
| SRC 8x5 R20 PRIMED | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 12.6 | SRC8000020512 | |
| SRC 8x6 R20 PRIMED | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 16.1 | SRC8000020612 | |
| SRC 8+8x1 R20 PRIMED | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 7 | SRC8800020112 | |
| SRC 8+8x2 R20 PRIMED | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 12.8 | 5SRC000007765 | |
| SRC 8+8x3 R20 PRIMED | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 13.3 | 5SRC000007401 | |
| SRC 8+8x4 R20 PRIMED | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 20.8 | 5SRC000008379 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 2x1 R20 AISI316 | 1 | 120 x 60 | 140.5 x 121 x 60 | 143(+1/-1) x 123(+1/-1) | 2 | 5SRC000004700 | |
| SRC 2x2 R20 AISI316 | 2 | 120 x 60 | 271 x 121 x 60 | 273(+1/-1) x 123(+1/-1) | 3.7 | 105848 | |
| SRC 2x3 R20 AISI316 | 3 | 120 x 60 | 401.5 x 121 x 60 | 404(+1/-1) x 123(+1/-1) | 5 | 113900 | |
| SRC 2x4 R20 AISI316 | 4 | 120 x 60 | 532 x 121 x 60 | 534(+1/-1) x 123(+1/-1) | 7.4 | 113901 | |
| SRC 2x5 R20 AISI316 | 5 | 120 x 60 | 662.5 x 121 x 60 | 665(+1/-1) x 123(+1/-1) | 9.1 | 113902 | |
| SRC 2x6 R20 AISI316 | 6 | 120 x 60 | 793 x 121 x 60 | 795(+1/-1) x 123(+1/-1) | 10.8 | 113903 | |

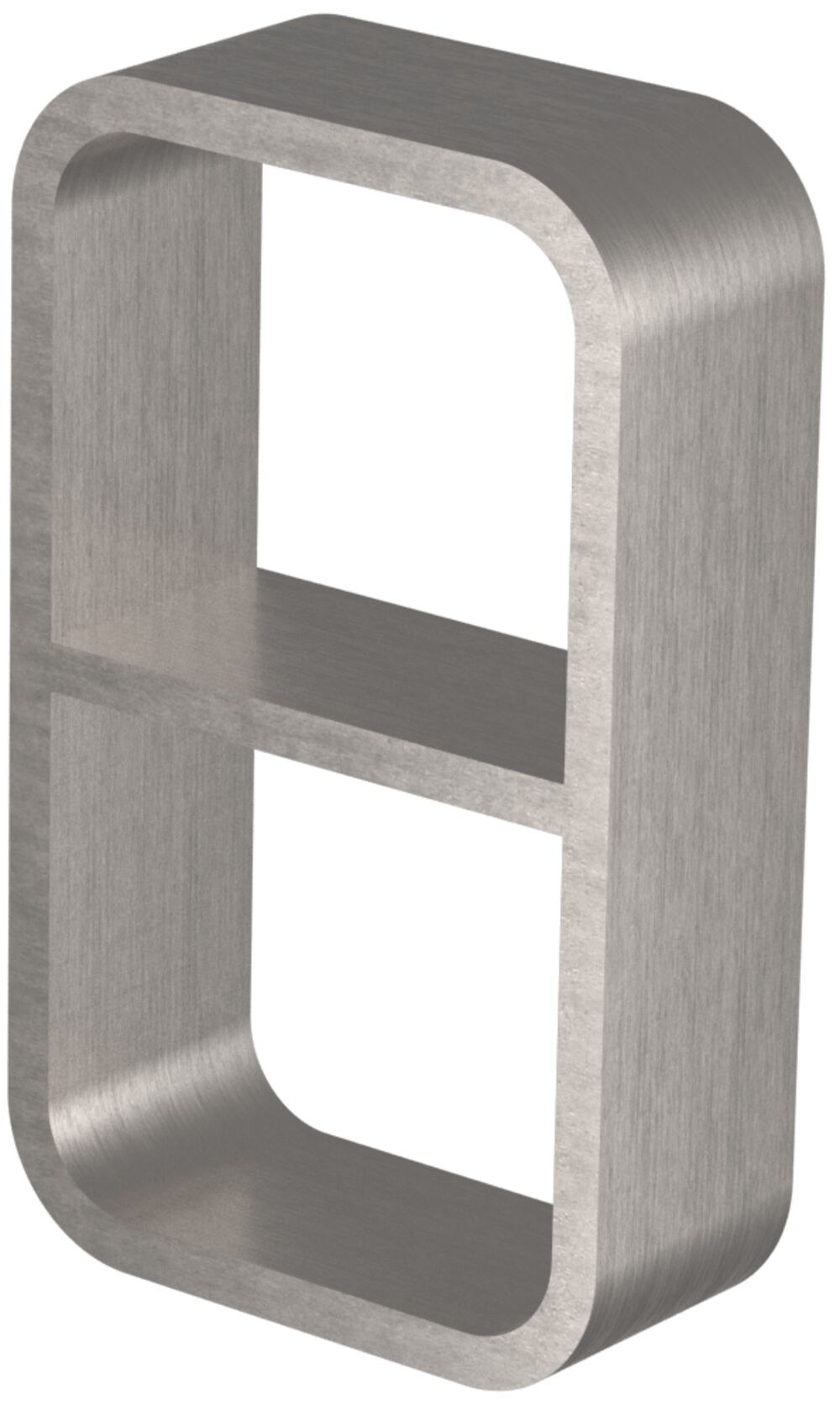

| SRC 2+2x1 R20 AISI316 | 2 | 120 x 60 | 140.5 x 232 x 60 | 143(+1/-1) x 234(+1/-1) | 3.9 | 113908 | |

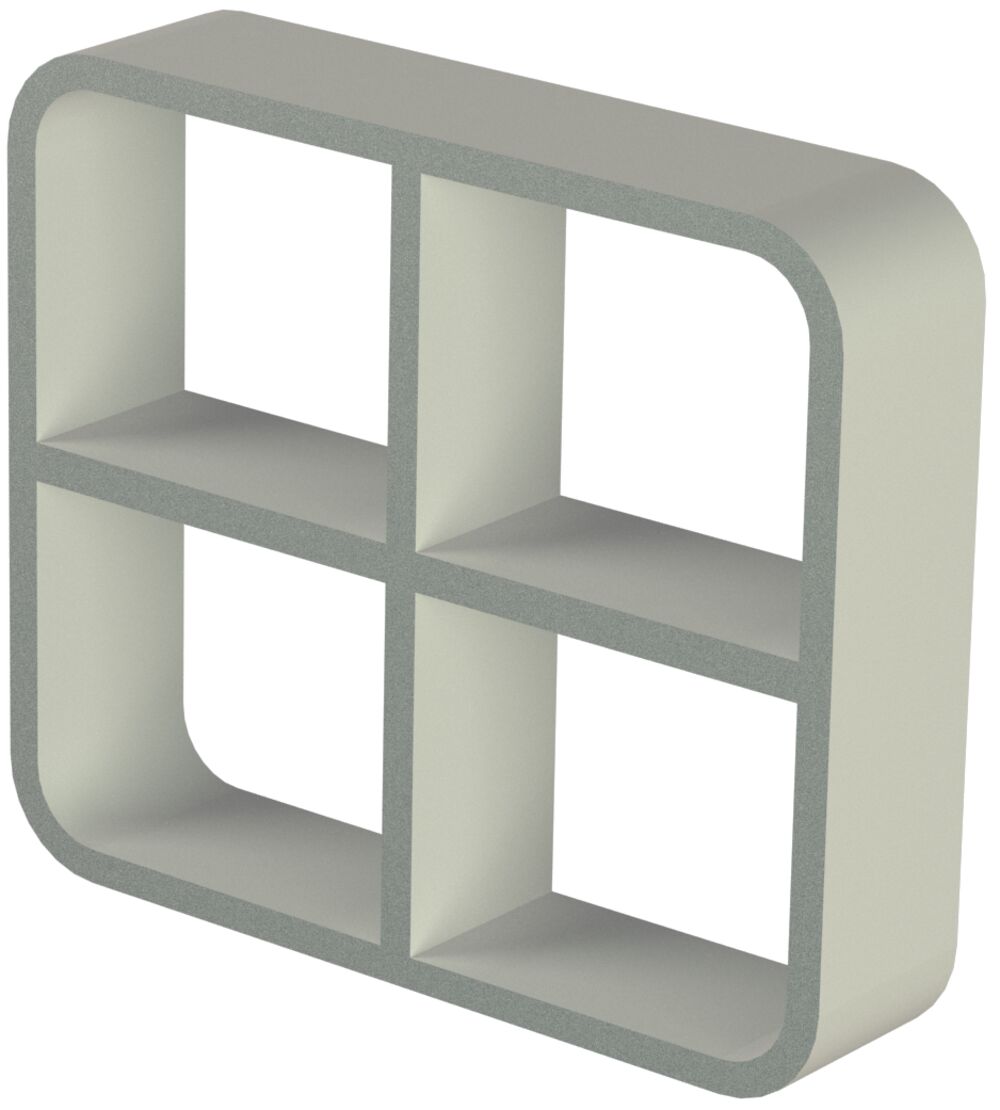

| SRC 2+2x2 R20 AISI316 | 4 | 120 x 60 | 271 x 242 x 60 | 273(+1/-1) x 244(+1/-1) | 8 | 113909 | |
| SRC 2+2x3 R20 AISI316 | 6 | 120 x 60 | 401.5 x 242 x 60 | 404(+1/-1) x 244(+1/-1) | 11.4 | 113910 | |
| SRC 2+2x4 R20 AISI316 | 8 | 120 x 60 | 532 x 242 x 60 | 534(+1/-1) x 244(+1/-1) | 14.8 | 113911 | |
| SRC 4x1 R20 AISI316 | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.8 | 5SRC000006107 | |
| SRC 4x2 R20 AISI316 | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.7 | 5SRC000006736 | |
| SRC 4x3 R20 AISI316 | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.6 | 5SRC000006971 | |
| SRC 4x4 R20 AISI316 | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.5 | 5SRC000006435 | |
| SRC 4x5 R20 AISI316 | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.3 | 5SRC000006972 | |
| SRC 4x6 R20 AISI316 | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12.2 | 5SRC000006973 | |
| SRC 4x7 R20 AISI316 | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.7 | 113933 | |
| SRC 4x8 R20 AISI316 | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 15.8 | 105892 | |
| SRC 4x9 R20 AISI316 | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 18.7 | 113934 | |
| SRC 4+4x1 R20 AISI316 | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 5 | 113936 | |
| SRC 4+4x2 R20 AISI316 | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.6 | 113937 | |
| SRC 4+4x3 R20 AISI316 | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13 | 5SRC000006668 | |
| SRC 4+4x4 R20 AISI316 | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 16.4 | 5SRC000007495 | |
| SRC 4+4x5 R20 AISI316 | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21.5 | 113938 | |
| SRC 4+4x6 R20 AISI316 | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 24.8 | 113939 | |
| SRC 6x1 R20 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3.3 | 5SRC000006106 | |
| SRC 6x2 R20 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | 5SRC000006105 | |
| SRC 6x3 R20 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.6 | 5SRC000006684 | |
| SRC 6x4 R20 AISI316 | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.9 | 5SRC000006685 | |
| SRC 6x5 R20 AISI316 | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 12.1 | 104267 | |
| SRC 6x6 R20 AISI316 | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | 113960 | |
| SRC 6x7 R20 AISI316 | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.5 | 113961 | |
| SRC 6x8 R20 AISI316 | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 19.2 | 113962 | |
| SRC 6x9 R20 AISI316 | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 21.4 | 113963 | |
| SRC 6+6x1 R20 AISI316 | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 5.7 | 5SRC000013682 | |
| SRC 6+6x2 R20 AISI316 | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11 | 5SRC000007413 | |
| SRC 6+6x3 R20 AISI316 | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 15.3 | 5SRC000006686 | |
| SRC 6+6x4 R20 AISI316 | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 19.7 | 113965 | |
| SRC 6+6x5 R20 AISI316 | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 25 | 113966 | |
| SRC 6+6x6 R20 AISI316 | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 30 | 113967 | |
| SRC 8x1 R20 AISI316 | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.8 | 5SRC000012346 | |
| SRC 8x2 R20 AISI316 | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.3 | 5SRC000012347 | |
| SRC 8x3 R20 AISI316 | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.5 | 5SRC000006654 | |
| SRC 8x4 R20 AISI316 | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 11.1 | 5SRC000006655 | |
| SRC 8x5 R20 AISI316 | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 13.9 | 104332 | |
| SRC 8x6 R20 AISI316 | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 16 | 113987 | |
| SRC 8+8x1 R20 AISI316 | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 6.9 | 5SRC000013683 | |
| SRC 8+8x2 R20 AISI316 | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 13 | 104357 | |
| SRC 8+8x3 R20 AISI316 | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 18 | 113992 | |
| SRC 8+8x4 R20 AISI316 | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 23 | 113993 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 2x1 R20 ALU | 1 | 120 x 60 | 140.5 x 121 x 60 | 143(+1/-1) x 123(+1/-1) | 0.7 | 5SRC000004148 | |
| SRC 2x2 R20 ALU | 2 | 120 x 60 | 271 x 121 x 60 | 273(+1/-1) x 123(+1/-1) | 1.3 | 5SRC000010908 | |
| SRC 2x3 R20 ALU | 3 | 120 x 60 | 401.5 x 121 x 60 | 404(+1/-1) x 123(+1/-1) | 2 | 5SRC000010909 | |
| SRC 2x4 R20 ALU | 4 | 120 x 60 | 532 x 121 x 60 | 534(+1/-1) x 123(+1/-1) | 2.6 | 5SRC000010910 | |
| SRC 2x5 R20 ALU | 5 | 120 x 60 | 662.5 x 121 x 60 | 665(+1/-1) x 123(+1/-1) | 3.2 | 5SRC000010911 | |
| SRC 2x6 R20 ALU | 6 | 120 x 60 | 793 x 121 x 60 | 795(+1/-1) x 123(+1/-1) | 3.8 | 119614 | |
| SRC 2+2x1 R20 ALU | 2 | 120 x 60 | 140.5 x 232 x 60 | 143(+1/-1) x 234(+1/-1) | 1.4 | 119619 | |
| SRC 2+2x2 R20 ALU | 4 | 120 x 60 | 271 x 242 x 60 | 273(+1/-1) x 244(+1/-1) | 2.8 | 119620 | |

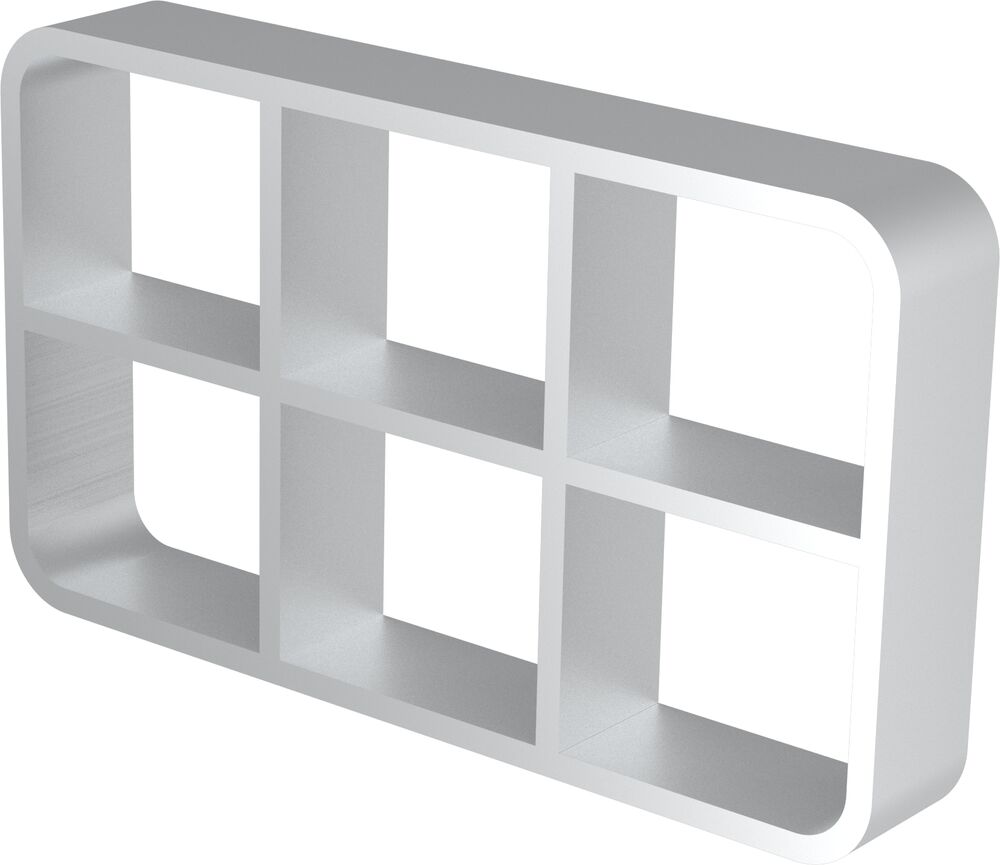

| SRC 2+2x3 R20 ALU | 6 | 120 x 60 | 401.5 x 242 x 60 | 404(+1/-1) x 244(+1/-1) | 4 | 119621 | |
| SRC 2+2x4 R20 ALU | 8 | 120 x 60 | 532 x 242 x 60 | 534(+1/-1) x 244(+1/-1) | 5.1 | 119622 | |
| SRC 4x1 R20 ALU | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 0.9 | SRC4000020131 | |
| SRC 4x2 R20 ALU | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 1.6 | 5SRC000004693 | |
| SRC 4x3 R20 ALU | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 2.2 | 106154 | |
| SRC 4x4 R20 ALU | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 3 | 106155 | |
| SRC 4x5 R20 ALU | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 3.7 | 119640 | |
| SRC 4x6 R20 ALU | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 4.4 | 119641 | |
| SRC 4x7 R20 ALU | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 5.1 | 119642 | |
| SRC 4x8 R20 ALU | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 5.8 | 119643 | |
| SRC 4x9 R20 ALU | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 6.5 | 119644 | |
| SRC 4+4x1 R20 ALU | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 1.8 | 119646 | |
| SRC 4+4x2 R20 ALU | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 3.3 | 119647 | |
| SRC 4+4x3 R20 ALU | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 4.7 | 119648 | |
| SRC 4+4x4 R20 ALU | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 6.1 | 119649 | |
| SRC 4+4x5 R20 ALU | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 7.4 | 119650 | |
| SRC 4+4x6 R20 ALU | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 8.8 | 119651 | |
| SRC 6x1 R20 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1.1 | 5SRC000003054 | |
| SRC 6x2 R20 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.9 | 5SRC000004149 | |
| SRC 6x3 R20 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000011726 | |
| SRC 6x4 R20 ALU | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 3.4 | 5SRC000009302 | |
| SRC 6x5 R20 ALU | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 4.2 | 105139 | |
| SRC 6x6 R20 ALU | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 5.1 | 119667 | |
| SRC 6x7 R20 ALU | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 5.8 | 119668 | |
| SRC 6x8 R20 ALU | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 6.6 | 119669 | |
| SRC 6x9 R20 ALU | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 7.4 | 119670 | |
| SRC 6+6x1 R20 ALU | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 2 | 5SRC000007884 | |
| SRC 6+6x2 R20 ALU | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 3.7 | 5SRC000009727 | |
| SRC 6+6x3 R20 ALU | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 5.4 | 119672 | |
| SRC 6+6x4 R20 ALU | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 7 | 119673 | |
| SRC 6+6x5 R20 ALU | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 8.6 | 119674 | |
| SRC 6+6x6 R20 ALU | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 10.1 | 119675 | |
| SRC 8x1 R20 ALU | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 1.3 | 5SRC000004178 | |
| SRC 8x2 R20 ALU | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 2.2 | 5SRC000004150 | |
| SRC 8x3 R20 ALU | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 3 | 106156 | |
| SRC 8x4 R20 ALU | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 3.9 | 5SRC000009301 | |
| SRC 8x5 R20 ALU | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 4.9 | 119691 | |
| SRC 8x6 R20 ALU | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 5.7 | 119692 | |
| SRC 8+8x1 R20 ALU | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 2.4 | 119697 | |
| SRC 8+8x2 R20 ALU | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 4.5 | 119698 | |
| SRC 8+8x3 R20 ALU | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 6.3 | 119699 | |
| SRC 8+8x4 R20 ALU | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 8 | 119700 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 4x1 R40 PRIMED | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.4 | SRC4000040112 | |
| SRC 4x2 R40 PRIMED | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.7 | SRC4000040212 | |
| SRC 4x3 R40 PRIMED | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.6 | SRC4000040312 | |
| SRC 4x4 R40 PRIMED | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.5 | SRC4000040412 | |
| SRC 4x5 R40 PRIMED | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.3 | SRC4000040512 | |
| SRC 4x6 R40 PRIMED | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12.2 | SRC4000040612 | |
| SRC 4x7 R40 PRIMED | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.1 | SRC4000040712 | |
| SRC 4x8 R40 PRIMED | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 16 | SRC4000040812 | |
| SRC 4x9 R40 PRIMED | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 17.9 | SRC4000040912 | |
| SRC 4+4x1 R40 PRIMED | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 5 | 5SRC000009665 | |
| SRC 4+4x2 R40 PRIMED | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.2 | 5SRC000009321 | |
| SRC 4+4x3 R40 PRIMED | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13.1 | 5SRC000007943 | |
| SRC 4+4x4 R40 PRIMED | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 17.4 | 5SRC000007744 | |
| SRC 4+4x5 R40 PRIMED | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21 | 5SRC000007944 | |
| SRC 4+4x6 R40 PRIMED | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 24.9 | 5SRC000007945 | |
| SRC 6x1 R40 PRIMED | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | SRC6000040112 | |
| SRC 6x2 R40 PRIMED | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.5 | SRC6000040212 | |
| SRC 6x3 R40 PRIMED | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.7 | SRC6000040312 | |
| SRC 6x4 R40 PRIMED | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.8 | SRC6000040412 | |
| SRC 6x5 R40 PRIMED | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 12 | SRC6000040512 | |
| SRC 6x6 R40 PRIMED | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | SRC6000040612 | |
| SRC 6x7 R40 PRIMED | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.3 | SRC6000040712 | |
| SRC 6x8 R40 PRIMED | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 18.5 | SRC6000040812 | |
| SRC 6x9 R40 PRIMED | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 20.8 | SRC6000040912 | |
| SRC 6+6x1 R40 PRIMED | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 5.7 | 5SRC000006939 | |
| SRC 6+6x2 R40 PRIMED | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11 | 5SRC000007526 | |
| SRC 6+6x3 R40 PRIMED | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 15.6 | 5SRC000007936 | |
| SRC 6+6x4 R40 PRIMED | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 19.6 | 5SRC000006214 | |
| SRC 6+6x5 R40 PRIMED | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 24.6 | 5SRC000007743 | |
| SRC 6+6x6 R40 PRIMED | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 29.5 | 5SRC000007745 | |
| SRC 8x1 R40 PRIMED | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.4 | SRC8000040112 | |
| SRC 8x2 R40 PRIMED | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.1 | SRC8000040212 | |
| SRC 8x3 R40 PRIMED | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.2 | SRC8000040312 | |
| SRC 8x4 R40 PRIMED | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 10.4 | SRC8000040412 | |
| SRC 8x5 R40 PRIMED | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 12.6 | SRC8000040512 | |
| SRC 8x6 R40 PRIMED | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 14.7 | SRC8000040612 | |
| SRC 8+8x1 R40 PRIMED | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 6.8 | 5SRC000009707 | |
| SRC 8+8x2 R40 PRIMED | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 12.5 | 5SRC000010044 | |
| SRC 8+8x3 R40 PRIMED | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 17.6 | 5SRC000009322 | |
| SRC 8+8x4 R40 PRIMED | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 21 | 5SRC000007527 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 4x1 R40 AISI316 | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 2.4 | 5SRC000006790 | |
| SRC 4x2 R40 AISI316 | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 4.4 | 110284 | |
| SRC 4x3 R40 AISI316 | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 6.4 | 110285 | |
| SRC 4x4 R40 AISI316 | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 8.3 | 110286 | |
| SRC 4x5 R40 AISI316 | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 10.2 | 114133 | |
| SRC 4x6 R40 AISI316 | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 12 | 114134 | |
| SRC 4x7 R40 AISI316 | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 14.7 | 114135 | |
| SRC 4x8 R40 AISI316 | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 16.7 | 114136 | |
| SRC 4x9 R40 AISI316 | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 18.7 | 110947 | |
| SRC 4+4x1 R40 AISI316 | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 4.5 | 111483 | |
| SRC 4+4x2 R40 AISI316 | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 9.6 | 111473 | |
| SRC 4+4x3 R40 AISI316 | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 13.6 | 111474 | |
| SRC 4+4x4 R40 AISI316 | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 17.5 | 111475 | |
| SRC 4+4x5 R40 AISI316 | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 21.5 | 114139 | |
| SRC 4+4x6 R40 AISI316 | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 25.5 | 114140 | |
| SRC 6x1 R40 AISI316 | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 3 | 5SRC000010300 | |
| SRC 6x2 R40 AISI316 | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 5.1 | 5SRC000010299 | |
| SRC 6x3 R40 AISI316 | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 7.4 | 5SRC000010298 | |
| SRC 6x4 R40 AISI316 | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 9.5 | 5SRC000010297 | |
| SRC 6x5 R40 AISI316 | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 11.9 | 109839 | |
| SRC 6x6 R40 AISI316 | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 14.2 | 109485 | |
| SRC 6x7 R40 AISI316 | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 16.4 | 110287 | |
| SRC 6x8 R40 AISI316 | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 18 | 104247 | |
| SRC 6x9 R40 AISI316 | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 21.4 | 110948 | |
| SRC 6+6x1 R40 AISI316 | 2 | 120 x 180 | 140.5 x 466 x 60 | 143(+1/-1) x 468(+1/-1) | 5.6 | 111484 | |
| SRC 6+6x2 R40 AISI316 | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 11 | 111476 | |
| SRC 6+6x3 R40 AISI316 | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 15.3 | 111477 | |
| SRC 6+6x4 R40 AISI316 | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 21 | 107714 | |
| SRC 6+6x5 R40 AISI316 | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 24.8 | 111478 | |
| SRC 6+6x6 R40 AISI316 | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 29.3 | 111479 | |
| SRC 8x1 R40 AISI316 | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 3.5 | 5SRC000012330 | |
| SRC 8x2 R40 AISI316 | 2 | 120 x 240 | 271 x 298 x 60 | 273(+1/-1) x 300(+1/-1) | 6.1 | 5SRC000012331 | |
| SRC 8x3 R40 AISI316 | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 8.6 | 5SRC000012730 | |
| SRC 8x4 R40 AISI316 | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 11.1 | 5SRC000012368 | |
| SRC 8x5 R40 AISI316 | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 13.6 | 5SRC000012731 | |
| SRC 8x6 R40 AISI316 | 6 | 120 x 240 | 793 x 298 x 60 | 795(+1/-1) x 300(+1/-1) | 16.1 | 5SRC000012720 | |
| SRC 8+8x1 R40 AISI316 | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 6.6 | 111485 | |
| SRC 8+8x2 R40 AISI316 | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 12.4 | 111480 | |
| SRC 8+8x3 R40 AISI316 | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 17.5 | 110535 | |
| SRC 8+8x4 R40 AISI316 | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 22 | 111481 |
| Titel | Rammeåbninger | Pakkeareal (mm) | Udvendige mål B x H x D (mm) | Åbningsmål BxH (mm) | Vægt (kg) | Art.-nr. | |
|---|---|---|---|---|---|---|---|
| SRC 4x1 R40 ALU | 1 | 120 x 120 | 140.5 x 179.5 x 60 | 143(+1/-1) x 182(+1/-1) | 0.8 | 5SRC000003233 | |
| SRC 4x2 R40 ALU | 2 | 120 x 120 | 271 x 179.5 x 60 | 273(+1/-1) x 182(+1/-1) | 1.6 | 5SRC000006359 | |

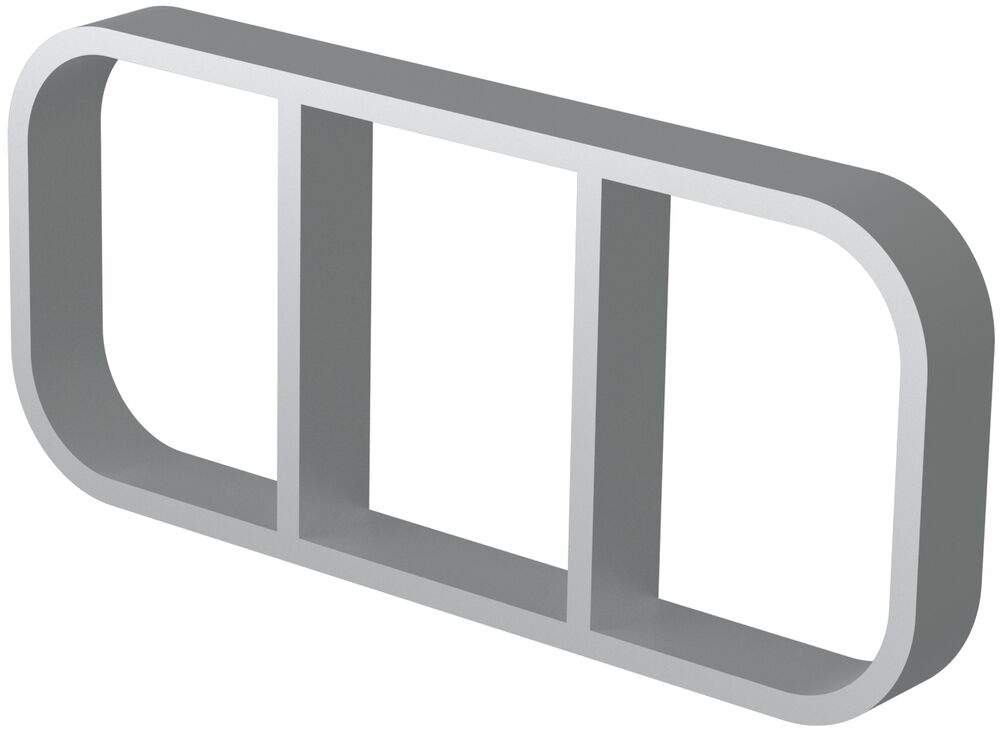

| SRC 4x3 R40 ALU | 3 | 120 x 120 | 401.5 x 179.5 x 60 | 404(+1/-1) x 182(+1/-1) | 2.2 | 5SRC000009762 | |
| SRC 4x4 R40 ALU | 4 | 120 x 120 | 532 x 179.5 x 60 | 534(+1/-1) x 182(+1/-1) | 2.9 | 5SRC000009763 | |
| SRC 4x5 R40 ALU | 5 | 120 x 120 | 662.5 x 179.5 x 60 | 665(+1/-1) x 182(+1/-1) | 3.3 | 5SRC000010915 | |
| SRC 4x6 R40 ALU | 6 | 120 x 120 | 793 x 179.5 x 60 | 795(+1/-1) x 182(+1/-1) | 4.2 | 5SRC000010916 | |
| SRC 4x7 R40 ALU | 7 | 120 x 120 | 923.5 x 179.5 x 60 | 926(+1/-1) x 182(+1/-1) | 5.1 | 119757 | |
| SRC 4x8 R40 ALU | 8 | 120 x 120 | 1054 x 179.5 x 60 | 1056(+1/-1) x 182(+1/-1) | 5.8 | 119758 | |
| SRC 4x9 R40 ALU | 9 | 120 x 120 | 1184.5 x 179.5 x 60 | 1187(+1/-1) x 182(+1/-1) | 6.5 | 119759 | |
| SRC 4+4x1 R40 ALU | 2 | 120 x 120 | 140.5 x 349 x 60 | 143(+1/-1) x 351(+1/-1) | 1.6 | 119761 | |
| SRC 4+4x2 R40 ALU | 4 | 120 x 120 | 271 x 359 x 60 | 273(+1/-1) x 361(+1/-1) | 3.3 | 119762 | |
| SRC 4+4x3 R40 ALU | 6 | 120 x 120 | 401.5 x 359 x 60 | 404(+1/-1) x 361(+1/-1) | 4.7 | 119763 | |
| SRC 4+4x4 R40 ALU | 8 | 120 x 120 | 532 x 359 x 60 | 534(+1/-1) x 361(+1/-1) | 6.1 | 119764 | |
| SRC 4+4x5 R40 ALU | 10 | 120 x 120 | 662.5 x 359 x 60 | 665(+1/-1) x 361(+1/-1) | 7.4 | 119765 | |
| SRC 4+4x6 R40 ALU | 12 | 120 x 120 | 793 x 359 x 60 | 795(+1/-1) x 361(+1/-1) | 9 | 119766 | |
| SRC 6x1 R40 ALU | 1 | 120 x 180 | 140.5 x 238 x 60 | 143(+1/-1) x 240(+1/-1) | 1 | 5SRC000003232 | |
| SRC 6x2 R40 ALU | 2 | 120 x 180 | 271 x 238 x 60 | 273(+1/-1) x 240(+1/-1) | 1.8 | 5SRC000005649 | |
| SRC 6x3 R40 ALU | 3 | 120 x 180 | 401.5 x 238 x 60 | 404(+1/-1) x 240(+1/-1) | 2.6 | 5SRC000005650 | |
| SRC 6x4 R40 ALU | 4 | 120 x 180 | 532 x 238 x 60 | 534(+1/-1) x 240(+1/-1) | 3.6 | 5SRC000005651 | |
| SRC 6x5 R40 ALU | 5 | 120 x 180 | 662.5 x 238 x 60 | 665(+1/-1) x 240(+1/-1) | 4.2 | 5SRC000010917 | |
| SRC 6x6 R40 ALU | 6 | 120 x 180 | 793 x 238 x 60 | 795(+1/-1) x 240(+1/-1) | 5.1 | 5SRC000010918 | |
| SRC 6x7 R40 ALU | 7 | 120 x 180 | 923.5 x 238 x 60 | 926(+1/-1) x 240(+1/-1) | 5.8 | 119783 | |
| SRC 6x8 R40 ALU | 8 | 120 x 180 | 1054 x 238 x 60 | 1056(+1/-1) x 240(+1/-1) | 6.6 | 119784 | |
| SRC 6x9 R40 ALU | 9 | 120 x 180 | 1184.5 x 238 x 60 | 1187(+1/-1) x 240(+1/-1) | 7.4 | 119785 | |
| SRC 6+6x2 R40 ALU | 4 | 120 x 180 | 271 x 476 x 60 | 273(+1/-1) x 478(+1/-1) | 3.9 | 119788 | |
| SRC 6+6x3 R40 ALU | 6 | 120 x 180 | 401.5 x 476 x 60 | 404(+1/-1) x 478(+1/-1) | 5.5 | 119789 | |
| SRC 6+6x4 R40 ALU | 8 | 120 x 180 | 532 x 476 x 60 | 534(+1/-1) x 478(+1/-1) | 7 | 119790 | |
| SRC 6+6x5 R40 ALU | 10 | 120 x 180 | 662.5 x 476 x 60 | 665(+1/-1) x 478(+1/-1) | 8.6 | 119791 | |
| SRC 6+6x6 R40 ALU | 12 | 120 x 180 | 793 x 476 x 60 | 795(+1/-1) x 478(+1/-1) | 10.1 | 119792 | |
| SRC 8x1 R40 ALU | 1 | 120 x 240 | 140.5 x 298 x 60 | 143(+1/-1) x 300(+1/-1) | 1.2 | 5SRC000004309 | |
| SRC 8x3 R40 ALU | 3 | 120 x 240 | 401.5 x 298 x 60 | 404(+1/-1) x 300(+1/-1) | 3 | 5SRC000006085 | |
| SRC 8x4 R40 ALU | 4 | 120 x 240 | 532 x 298 x 60 | 534(+1/-1) x 300(+1/-1) | 3.9 | 5SRC000010919 | |
| SRC 8x5 R40 ALU | 5 | 120 x 240 | 662.5 x 298 x 60 | 665(+1/-1) x 300(+1/-1) | 4.6 | 5SRC000010920 | |
| SRC 8+8x1 R40 ALU | 2 | 120 x 240 | 140.5 x 586 x 60 | 143(+1/-1) x 588(+1/-1) | 2.4 | 5SRC000007047 | |
| SRC 8+8x2 R40 ALU | 4 | 120 x 240 | 271 x 596 x 60 | 273(+1/-1) x 598(+1/-1) | 4.5 | 119811 | |
| SRC 8+8x3 R40 ALU | 6 | 120 x 240 | 401.5 x 596 x 60 | 404(+1/-1) x 598(+1/-1) | 6 | 5SRC000006112 | |
| SRC 8+8x4 R40 ALU | 8 | 120 x 240 | 532 x 596 x 60 | 534(+1/-1) x 598(+1/-1) | 8 | 119812 |
