Roxtec CRF PPS modules are 30 mm (1.181") deep and are sized to fit specific conduit diameters. They include intumescent material that expands up to 35 times its size in case of fire to close off and protect plastic conduit penetrations. The modules are tested and approved for rolling stock applications with plastic conduits. To be used with corresponding Roxtec CRF frames and components to form a complete sealing solution.
- To be used with corresponding Roxtec components to form a complete sealing solution
- For conduits and pipes up to 34,5mm (1,35") OD
Technical drawings
Component articles
| Product | External dimensions WxHxD (mm) | Number of cables/pipes | For cable/pipe Ø (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|

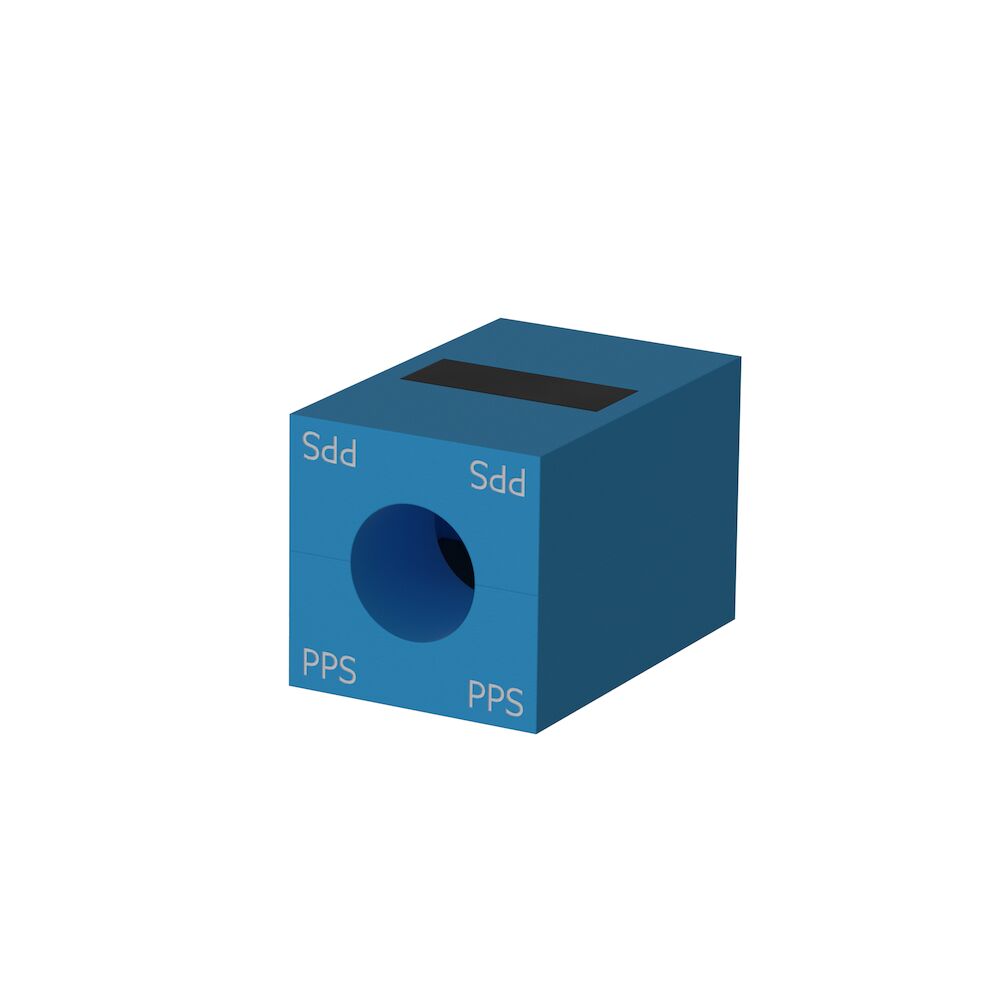

| CRF 20/10 PPS WOC | 20 x 20 x 30 | 1 | 10 - 10 | 0.02 | 190332 | |
| CRF 20/13 PPS WOC | 20 x 20 x 30 | 1 | 13 - 13 | 0.02 | 190333 | |

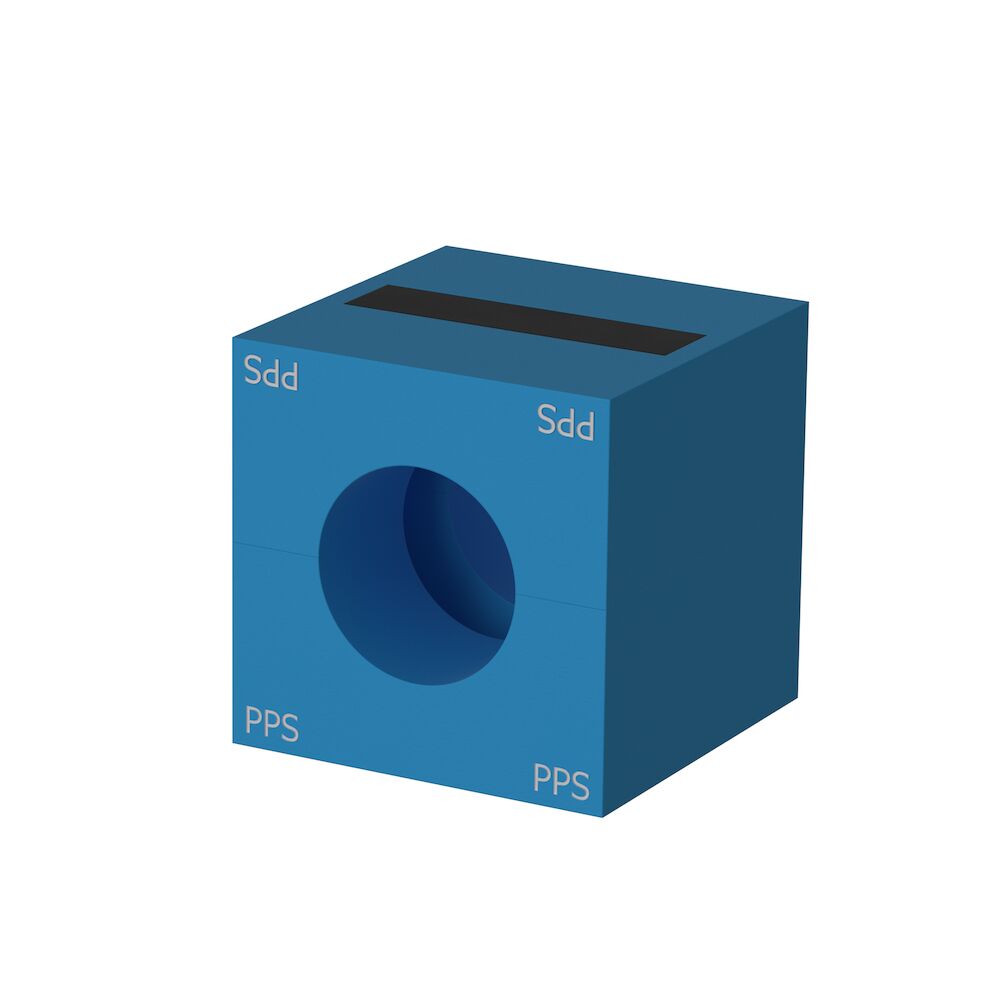

| CRF 30/15.8 PPS WOC | 30 x 30 x 30 | 1 | 15.8 - 15.8 | 0.04 | 190334 | |

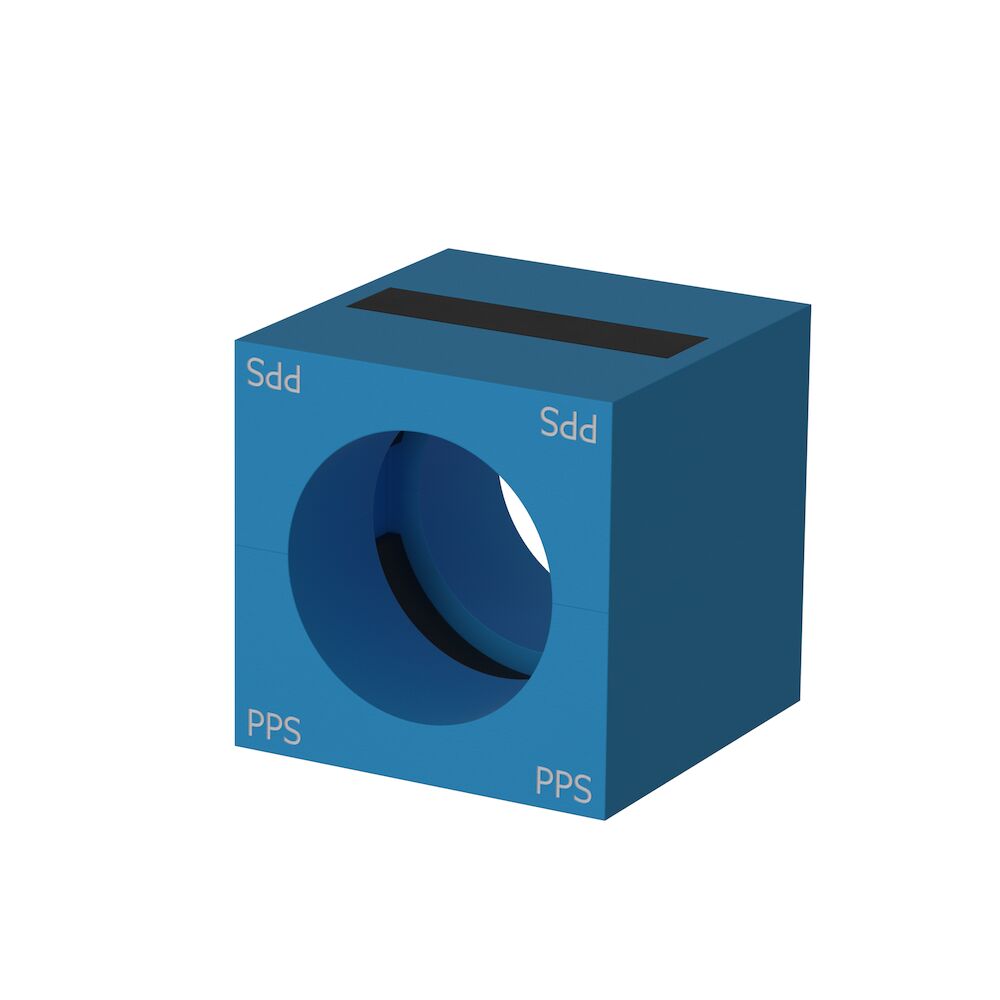

| CRF 30/21.2 PPS WOC | 30 x 30 x 30 | 1 | 21.2 - 21.2 | 0.03 | 190335 | |
| CRF 40/28.5 PPS WOC | 40 x 40 x 30 | 1 | 28.5 - 28.5 | 0.04 | 190336 | |
| CRF 40/34.5 PPS WOC | 40 x 40 x 30 | 1 | 34.5 - 34.5 | 0.04 | 190337 | |
| CRF 40/21.2 PPS WOC | 40 x 40 x 30 | 1 | 21.5 - 21.5 | 0.04 | 205030 |
