IP 54 rated cable entry seal for EMC.

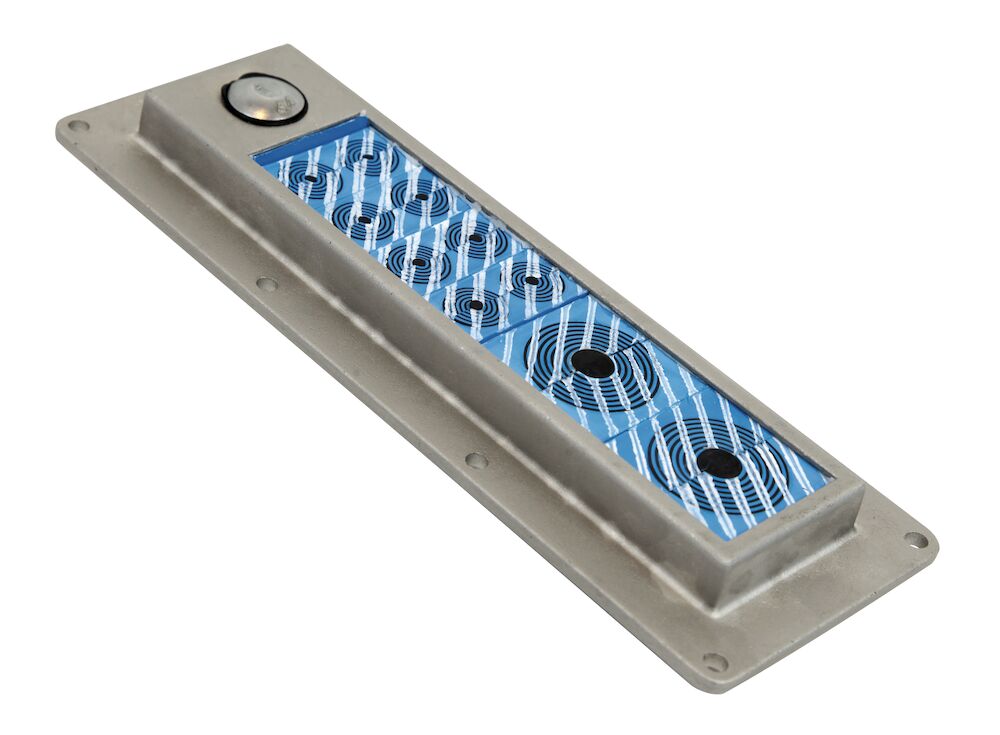

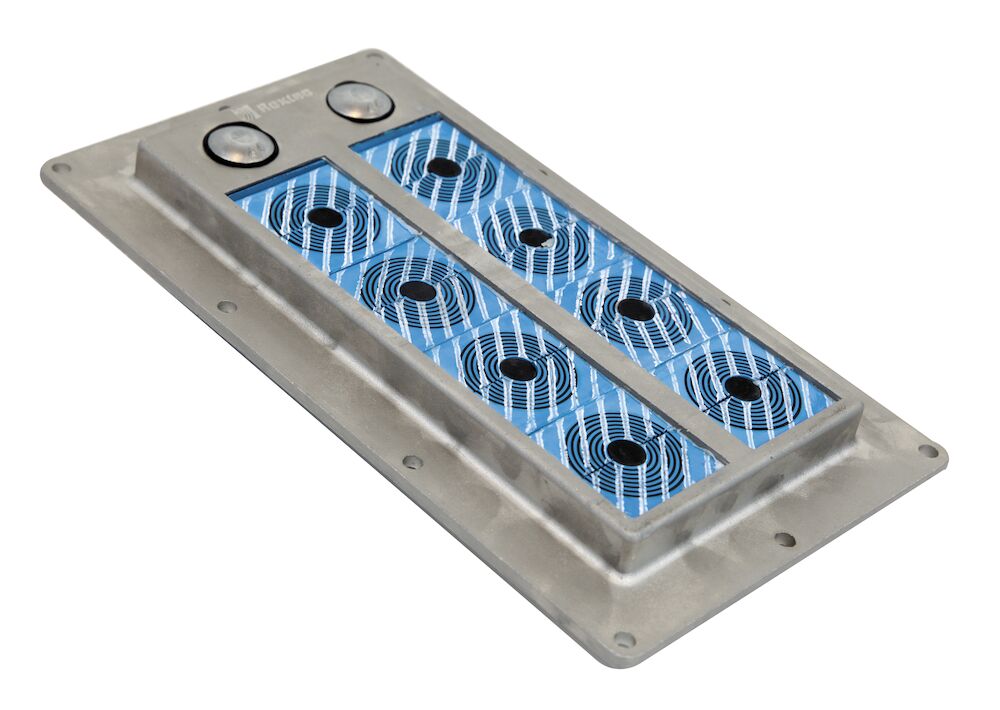

The Roxtec ComSeal™ EMC is rated for IP 54 and designed to ensure electromagnetic compatibility. The seal is available with frame in nickel-plated aluminum. There is a choice between Roxtec ES modules for electromagnetic shielding and PE modules that protect against conducted disturbances. The modules adapt to a variety of cable sizes. The transit is available in six different sizes to accommodate 4 to 32 cables.
Download
Product characteristics
-
IP/UL NEMA
-
EMI protection
Download
Ratings & certificates
Certificates are continuously added, renewed and replaced, please visit regularly to ensure compliance.
Installation
Structure of installation
-
Cabinets & enclosures
Installation instructions
Technical drawings
Technical drawings
Seals for your industry
Explore the multitude of applications where you can benefit from our solutions.
Sealing component data
Here you find technical information about each specific part of our system.
Rectangular frames
Sealing components
Pre-configured transit kits
For electromagnetic shielding
For potential equalization
| Product | Configuration | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|
| ComSeal 10/4 ES | 2x (3.5-16.5), 2x (9.5-32.5) | 81 x 173 x 55 | 56(+1/-1) x 149(+1/-1) | 0.6 | CSE0000000104 | |
| ComSeal 10/7 ES | 6x (3.5-16.5), 1x (9.5-32.5) | 81 x 173 x 55 | 56(+1/-1) x 149(+1/-1) | 0.6 | CSE0000000107 | |
| ComSeal 10/10 ES | 10x (3.5-16.5) | 81 x 173 x 55 | 56(+1/-1) x 149(+1/-1) | 0.6 | CSE0000001010 | |
| ComSeal 12/3 ES | 3x (9.5-32.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSE0000001203 | |
| ComSeal 12/6 ES | 4x (3.5-16.5), 2x (9.5-32.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSE0000001206 | |
| ComSeal 12/9 ES | 8x (3.5-16.5), 1x (9.5-32.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSE0000001209 | |
| ComSeal 12/12 ES | 12x (3.5-16.5) | 88 x 216 x 55 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSE0000001212 | |
| ComSeal 15/3 ES | 3x (28.0-44.0) | 91 x 223 x 55 | 61(+1/-1) x 195(+1/-1) | 0.9 | CSE0000001503 | |
| ComSeal 16/4 ES | 4x (9.5-32.5) | 81 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.9 | CSE0000000164 | |
| ComSeal 16/7 ES | 4x (3.5-16.5), 3x (9.5-32.5) | 81 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.9 | CSE0000000167 | |
| ComSeal 16/10 ES | 8x (3.5-16.5), 2x (9.5-32.5) | 81 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.9 | CSE0000001610 | |
| ComSeal 16/16 ES | 16x (3.5-16.5) | 81 x 233 x 55 | 56(+1/-1) x 209(+1/-1) | 0.9 | CSE0000001616 | |
| ComSeal 30/6 ES | 6x (28.0-44.0) | 155 x 231 x 55 | 120(+1/-1) x 195(+1/-1) | 1.6 | CSE0000003006 | |
| ComSeal 32/8 ES | 8x (9.5-32.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.4 | CSE0000003208 | |
| ComSeal 32/14 ES | 8x (3.5-16.5), 6x (9.5-32.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.6 | CSE0000003214 | |
| ComSeal 32/20 ES | 16x (3.5-16.5), 4x (9.5-32.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.5 | CSE0000003220 | |
| ComSeal 32/32 ES | 32x (3.5-16.5) | 135 x 241 x 55 | 103(+1/-1) x 209(+1/-1) | 1.5 | CSE0000003232 |
| Product | Configuration | External dimensions WxHxD (mm) | Aperture dimensions WxH (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|
| ComSeal 10/4 PE | 2x (3.5-16.5), 2x (9.5-32.5) | 81 x 173 x 33 | 56(+1/-1) x 149(+1/-1) | 0.7 | CSP0000000104 | |
| ComSeal 10/7 PE | 6x (3.5-16.5), 1x (9.5-32.5) | 81 x 173 x 33 | 56(+1/-1) x 149(+1/-1) | 0.6 | CSP0000000107 | |
| ComSeal 10/10 PE | 10x (3.5-16.5) | 81 x 173 x 33 | 56(+1/-1) x 149(+1/-1) | 0.46 | CSP0000001010 | |
| ComSeal 12/3 PE | 3x (9.5-32.5) | 88 x 216 x 33 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSP0000001203 | |
| ComSeal 12/6 PE | 4x (3.5-16.5), 2x (9.5-32.5) | 88 x 216 x 33 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSP0000001206 | |
| ComSeal 12/9 PE | 8x (3.5-16.5), 1x (9.5-32.5) | 88 x 216 x 33 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSP0000001209 | |
| ComSeal 12/12 PE | 12x (3.5-16.5) | 88 x 216 x 33 | 56(+1/-1) x 169(+1/-1) | 0.8 | CSP0000001212 | |
| ComSeal 15/3 PE | 3x (28.0-44.0) | 81 x 223 x 33 | 61(+1/-1) x 195(+1/-1) | 0.9 | CSP0000001503 | |
| ComSeal 16/4 PE | 4x (9.5-32.5) | 81 x 233 x 33 | 56(+1/-1) x 209(+1/-1) | 0.8 | CSP0000000164 | |
| ComSeal 16/7 PE | 4x (3.5-16.5), 3x (9.5-32.5) | 81 x 233 x 33 | 56(+1/-1) x 209(+1/-1) | 0.8 | CSP0000000167 | |
| ComSeal 16/10 PE | 8x (3.5-16.5), 2x (9.5-32.5) | 81 x 233 x 33 | 56(+1/-1) x 209(+1/-1) | 0.8 | CSP0000001610 | |
| ComSeal 16/16 PE | 16x (3.5-16.5) | 81 x 233 x 33 | 56(+1/-1) x 209(+1/-1) | 0.8 | CSP0000001616 | |
| ComSeal 30/6 PE | 6x (28.0-44.0) | 155 x 231 x 33 | 120(+1/-1) x 195(+1/-1) | 1.6 | CSP0000003006 | |
| ComSeal 32/8 PE | 8x (9.5-32.5) | 135 x 241 x 33 | 103(+1/-1) x 209(+1/-1) | 1.5 | CSP0000003208 | |
| ComSeal 32/14 PE | 8x (3.5-16.5), 6x (9.5-32.5) | 135 x 241 x 33 | 103(+1/-1) x 209(+1/-1) | 1.5 | CSP0000003214 | |
| ComSeal 32/20 PE | 16x (3.5-16.5), 4x (9.5-32.5) | 135 x 241 x 33 | 103(+1/-1) x 209(+1/-1) | 1.5 | CSP0000003220 | |
| ComSeal 32/32 PE | 32x (3.5-16.5) | 135 x 241 x 33 | 103(+1/-1) x 209(+1/-1) | 1.5 | CSP0000003232 |
